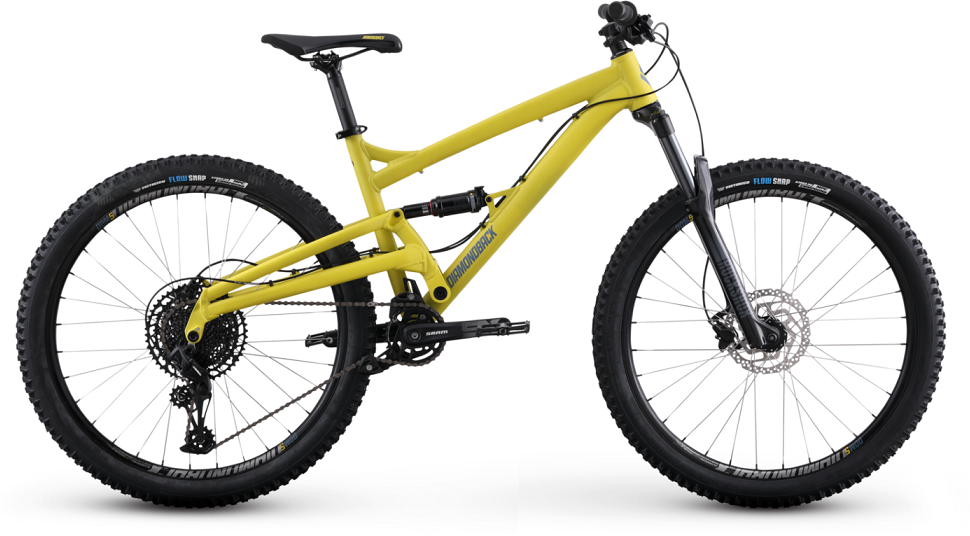

Diamondback Atroz 3

Diamondback Atroz 3
$1,999.99
Size:
Large
Please select options

Details

With the Atroz 3, we took the proven and refined single-pivot full-suspension design and upped the ante in a big way. It’s a full RockShox affair when it comes to suspension, including the five-inch travel Recon RL air-sprung fork with 32mm stanchions and a quick release thru-axle. Likewise, we outfitted this model with SRAM’s SX Eagle 12-speed drivetrain — all the simplicity and durability of a single-ring drivetrain, with the low gearing you once needed a front derailleur to obtain. Shimano hydraulic disc brakes provide plenty of stopping power, and we finished the bike off with a Race Face Chester bar and stem combo.

FRAME
Atroz 6061 T-6 Aluminum 27.5 Trail w/ 4" travel, Optimized Single Pivot, Tapered Steerer, Machine Formed Top Tube, Butted / Formed Down Tube, Sealed Cartridge Bearing Pivot, Seat Tube Routed for Internal Dropper Post, Aggressive Geometry, 142x12mm Rear Axle w/ Replaceable Hanger
REAR SHOCK
RockShox Monarch R, Air Shock w/ Rebound Adjust, 184x44mm
FORK
RockShox Recon RL, Solo Air, 130mm Travel, 32mm Stanchions, 15mm Thru-Axle, 1.5" Tapered Steerer Tube, w/ Rebound and Lock Out Adjust
HEADSET
FSA NO.57, Sealed Cartridge for Tapered Headtube
CRANKS
Race Face Æffect Cinch w/ Steel 30T "Narrow Wide"
BOTTOM BRACKET
Race Face Outboard Bearing
REAR DERAILLEUR
SRAM SX EAGLE, 12 Speed
SHIFTER
SRAM SX 12 Speed X-Actuation Trigger
COGSET
SRAM PG1210, 12 Speed, 11-50T
CHAIN
KMC X12, 12 Speed
FRONT HUB
Formula Hub, 32h Aluminum Boost 110x15mm Thru-axle, Sealed Cartridge Bearings, w/ CNC Disc Mount
REAR HUB
Formula Hub, 32h Aluminum 142x12mm Thru-axle, 4 Sealed Cartridge Bearings, Cassette, w/ CNC Disc Mount
SPOKES
14g Stainless Steel
RIMS
32H, DDM-5, 27.5 Doublewall
TIRES
VEE Rubber, Mission, 27.5x2.3
BRAKE LEVERS
Shimano MT200 Hydraulic
PEDALS
DB4L Aluminum Platform
HANDLEBAR
Race Face Chester, 780mm Wide, 35 Bar Bore
GRIPS
New DB "Flanged" Lock-on, 135mm Silcone
STEM
Race Face Chester, 40mm Reach, 35 Bar Bore
SEAT
DB Sync'r Saddle
SEATPOST
Aluminum Micro Adjust, 30.9mm
EXTRAS
Tool Kit
BRAKES
Shimano MT200 Hydraulic Disc, w/ 180mm Front and 160mm Rear Rotors
PRODUCT ID
4685
