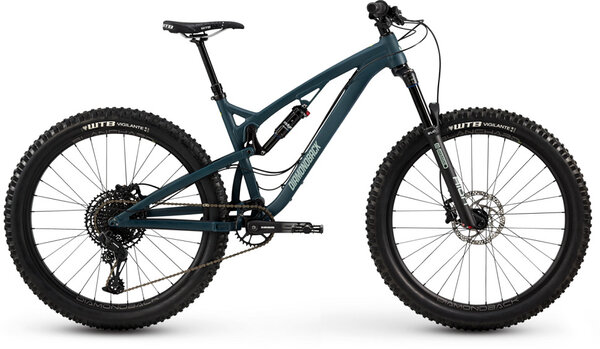

Diamondback Catch 1

“Adventure bikes” are often plodding beasts of burden that sacrifice thrills in the pursuit of extra stability. Well, where’s the adventure in that? We went a different route entirely. By adding 2.8” wide, plus-size tires to our Level Link suspension, we’ve created a bike that absolutely rips on tight trails, but does so with the extra grip and control of a plus-size bike. Voila — adventure made awesome. We gave the Catch a slack-but-not-too-slack front end. We wanted control on fast descents, but we weren’t willing to give up maneuverability on tight trails. A Sram SX Eagle 12 speed drivetrain gives you the gearing to tackle any terrain and TRP Slate X2 hydraulic disc brakes bring this machine to a tidy stop. If you’re looking to tackle rough terrain and want the ultimate in control, without sacrificing the thrill of riding, the Catch is your bike.

SPECIFICATIONS
FRAME
Catch 27.5+, 130mm Travel, Level Link Suspension Platform, Hydroformed Tubing, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube
REAR SHOCK
Suntour Edge R, 200x57mm, Rebound Adjust, 22.2mm Eyelet Width
FORK
SR Suntour Aion 27.5"+/29", 130mm Travel, Air Spring w/Rebound Adjust, 35mm Stanction, 1.5" Aluminum Taper Steerer, 110x15mm Thru-axle
HEADSET
FSA No. 57, Sealed Cartridge
CRANKS
SRAM SX w/Steel 32T Direct Mount
BOTTOM BRACKET
SRAM Powerspline, 118/73
REAR DERAILLEUR
SRAM SX Eagle, 12 Speed
SHIFTER
SRAM SX Eagle, 12 Speed
COGSET
SRAM PG1210, 12 Speed, 11-50T
CHAIN
SRAM SX Eagle, 12 Speed
FRONT HUB
32h Aluminum Boost 110x15mm Thru-axle, Sealed Cartridge Bearing
REAR HUB
32h Aluminum Boost 148x12mm Thru-axle, 4 Sealed Cartridge Bearing, Cassette
SPOKES
14g Stainless Steel
RIMS
Diamondback Blanchard 38R, Tubeless Compatible, 32h
TIRES
WTB Vigilante 27.5x2.8", Wire Bead
BRAKE LEVERS
TRP Slate
PEDALS
DB Aluminum Platform w/Replaceable Pins
HANDLEBAR
DB35 Aluminum 760mm Wide, 15mm Rise, 35mm Bar Bore
GRIPS
DB Lock-On Grip
STEM
DB35 Aluminum 35mm Reach, 35mm Bar Bore
SEAT
WTB Koda Comp
SEATPOST
Kindshock EXA Form 900i, Internal Dropper, 31.6mm w/1x Remote
EXTRAS
Tool Kit, DB Shock Pump, DB Mud Guard, Spare RD Hanger
BRAKES
TRP Slate X2, w/ 180mm Front / 180mm Rear Rotors
