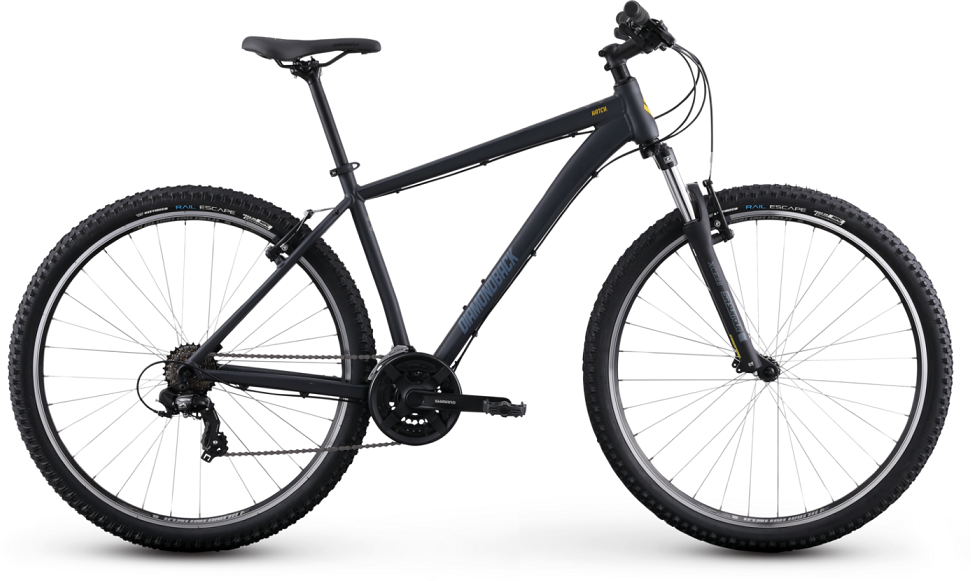

Diamondback Hatch 1

At home on dirt, gravel, and pavement, the Hatch 1 keeps the adventure going when it’s time to explore the path less travelled. A 100mm travel fork and grippy 2.25-inch wide knobby tires help you easily roll over bumps and potholes with confidence. With 21 gear combinations at your fingertips, you’ll always find a comfortable pedaling pace, and Tektro V-brakes will keep your speed under control. Introduce yourself to the adventure a hardtail can bring without breaking the bank.


FRAME
Custom Formed AL-6061 Heat Treated Aluminum with Progressive wheel Sizing (27.5" - XS,S) (29" - M,L,XL)
FORK
SR Suntour XCE-28 100mm of Travel with Pre-Load Adjuster, for Post mount V-brakes
HEADSET
1-1/8 Semi Integrated, Cartridge Bearing
CRANKS
Shimano Tourney TY301, 42/34/24t
BOTTOM BRACKET
Sealed Cartridge Bearing
FRONT DERAILLEUR
Shimano Tourney TY500, Dual Pull
REAR DERAILLEUR
Shimano Tourney TY300
SHIFTER
Shimano EF-41 3x7 Speed EZ-Fire Shifter
COGSET
Shimano MFTZ500 14-28 Tooth Freewheel
CHAIN
KMX Z-7
FRONT HUB
Formula OV-31F Quick Release
REAR HUB
Formula OV-31R Quick Release
SPOKES
Steel J-Bend
RIMS
Aluminum MTB DBM-2 Double Wall, 32 hole
TIRES
Vee Tire Co. Rubber Rail Escape, 27.5x2.25 or 29x2.25"
BRAKE LEVERS
Shimano EF41 with 2-finger Reach Adjustable lever
PEDALS
Wellgo Plastic Body Platform
HANDLEBAR
Aluminum 31.8mm Bar, 25mm Rise
GRIPS
MTB Grip
STEM
Aluminum MTB 31.8 Bar Bore Stem
SEAT
MTB Saddle
SEATPOST
Aluminum 27.2 Post with 15mm Offset
EXTRAS
Rack, Fender and Bottle Mounts
BRAKES
Tektro 855AL V-Brake
