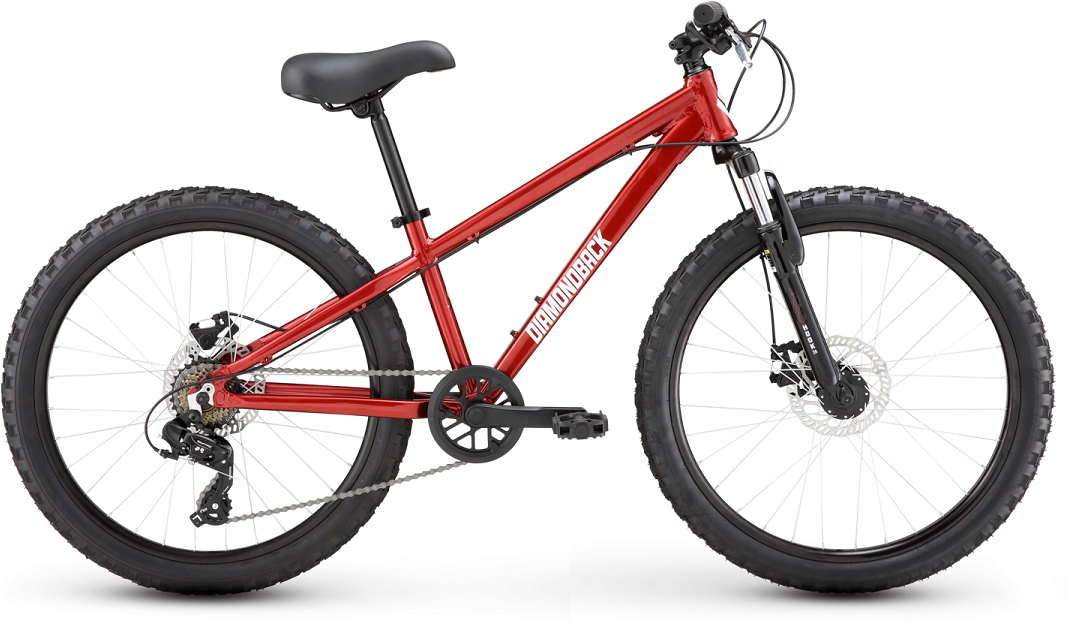

Diamondback Hook 24

A bike that introduces them to the action, the Hook 24 is a junior version of our do-anything hardtail mountain bike. Equipped to handle the abuse of real mountain bike trails and daily use around the neighborhood, it’s made from the same aluminum alloy as our full-size bikes, so it’s practically indestructible. A Zoom fork will give them the confidence to take on obstacles, giving your ripper-to-be 50mm of front suspension travel. The 24-inch wheels are stiff and stable, shod with aggressive 2.25-inch wide tires: perfect for tearing up the woods. Disc brakes and a Shimano 7 speed drivetrain will keep them climbing. This model fits riders 53”-62” tall, aged approximately 8-12 years old.

FRAME
6061 T-6 Aluminum Jr-24" Frame, Formed Tubing, Disc Specific w/ Replaceable Hanger
REAR SHOCK
N/A
FORK
Zoom 386A MTB Suspension Fork, 50mm of Travel, 9mm QR
HEADSET
1 1/8" Internal Cartridge Bearing
CRANKS
Aluminum Arm, w/ 28T Steel Single Ring, 152mm
BOTTOM BRACKET
Cartridge Bearing, 119mm Spindle
FRONT DERAILLEUR
N/A
REAR DERAILLEUR
Shimano Tourney TY300, 7 Speed
SHIFTER
Shimano M315 Tigger Shifter
COGSET
Shimano TZ500, 14-28T
CHAIN
KMC Z7, 7 Speed
FRONT HUB
KT 32h Aluminum w/ CNC Disc Mount, 100mm
REAR HUB
KT 32h Aluminum w/ CNC Disc Mount, 135mm
SPOKES
14g Stainless Steel
RIMS
32h Diamondback Doublewall
TIRES
MTB Wanda Tire 24x2.25"
BRAKE LEVERS
MTB Disc Brake Lever, Alloy Arm
PEDALS
DB 806 Resin Platform
HANDLEBAR
Aluminum Youth MTB, 580mm Wide, 18mm Rise, 25.4 Bar Bore
GRIPS
Youth MTB Grip, 110mm
STEM
Alloy Youth Stem, 50mm Length
SEAT
Cionlli Youth MTB Saddle
SEATPOST
Aluminum 27.2mm Post
BRAKES
Mechanical Disc
PRODUCT ID
4774
* Specifications are subject to change without notice
