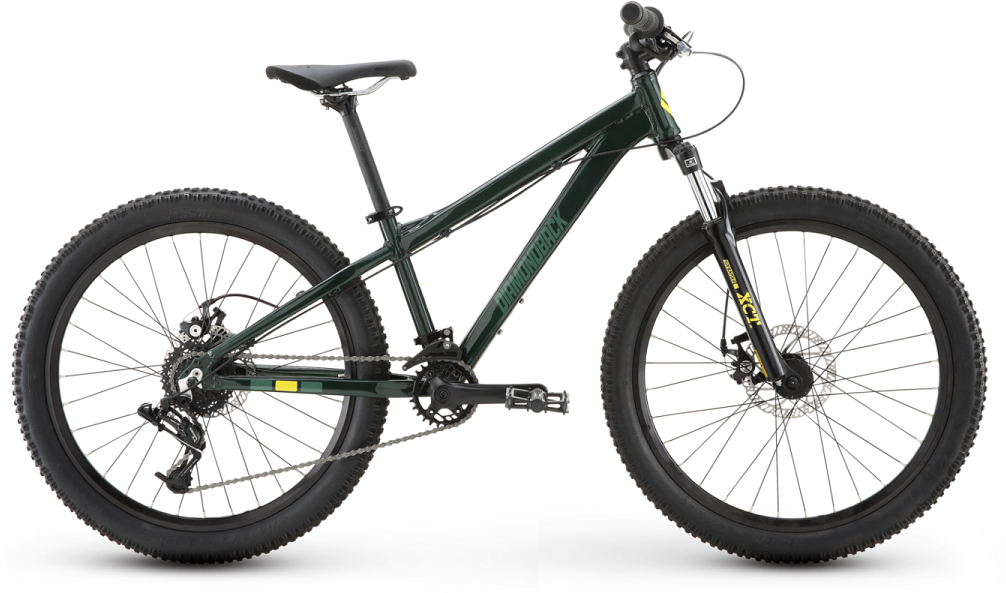

Diamondback Line 24

A bike they can grow with, the Line 24 is a junior version of our do-anything hardtail mountain bike. Equipped to handle the abuse of real mountain bike trails and daily use around the neighborhood, it’s made from the same aluminum alloy as our full-size bikes, so it’s practically indestructible. An SR Suntour fork performs like the big people’s bikes, giving your ripper-to-be 80mm of front suspension travel. The 24-inch wheels are stiff and stable, shod with aggressive 2.25-inch wide tires: perfect for tearing up the woods. Disc brakes and a wide-range SRAM 1×8 drivetrain are real performance features, underscoring that the Line 24 is a legit mountain bike—only smaller. This model fits riders 53”-62” tall, aged approximately 8-12 years old.

FRAME
6061 T-6 Aluminum Jr-24" Frame, Formed Tubing, Disc Specific w/ Replaceable Hanger
REAR SHOCK
N/A
FORK
SR Suntour XCT JR 24", 80mm Travel, 28mm Stanchion, Aluminum Lowers, w/ Preload Adjust
HEADSET
FSA IS-3/NO.11 Integrated Style
CRANKS
Aluminum Arm, w/ 28T Steel Single Ring, 155mm
BOTTOM BRACKET
Sealed Cartridge
FRONT DERAILLEUR
Upper Chain Guide, 34.9 Clamp Diameter
REAR DERAILLEUR
SRAM X4, 8 Speed
SHIFTER
SRAM X4 8 Speed
COGSET
SRAM PG820 Cassette, 8 Speed, 11-32T
CHAIN
KMC Z82, 8 Speed
FRONT HUB
32h Aluminum w/ CNC Disc Mount
REAR HUB
32h Aluminum w/ CNC Disc Mount, Cassette
SPOKES
14g Stainless Steel
RIMS
32h Diamondback Doublewall
TIRES
CST, 24x2.25"
BRAKE LEVERS
Tektro 2 Finger Aluminum Linear w/ Reach Adjust
PEDALS
DB4L Resin Platform
HANDLEBAR
Diamondback, 720mm Wide, 15mm Rise, 31.8 Bar Bore
GRIPS
DB "Flanged" 135mm Silcone
STEM
Diamondback "Shortie", 45mm Reach, 31.8 Bar Bore
SEAT
DB Sync'r Jr. Saddle
SEATPOST
Aluminum Micro Adjust, 27.2mm
BRAKES
Tektro Aries Mechanical Disc, w/ 160mm Rotors
PRODUCT ID
4695
* Specifications are subject to change without notice
