Diamondback Sync'r 24

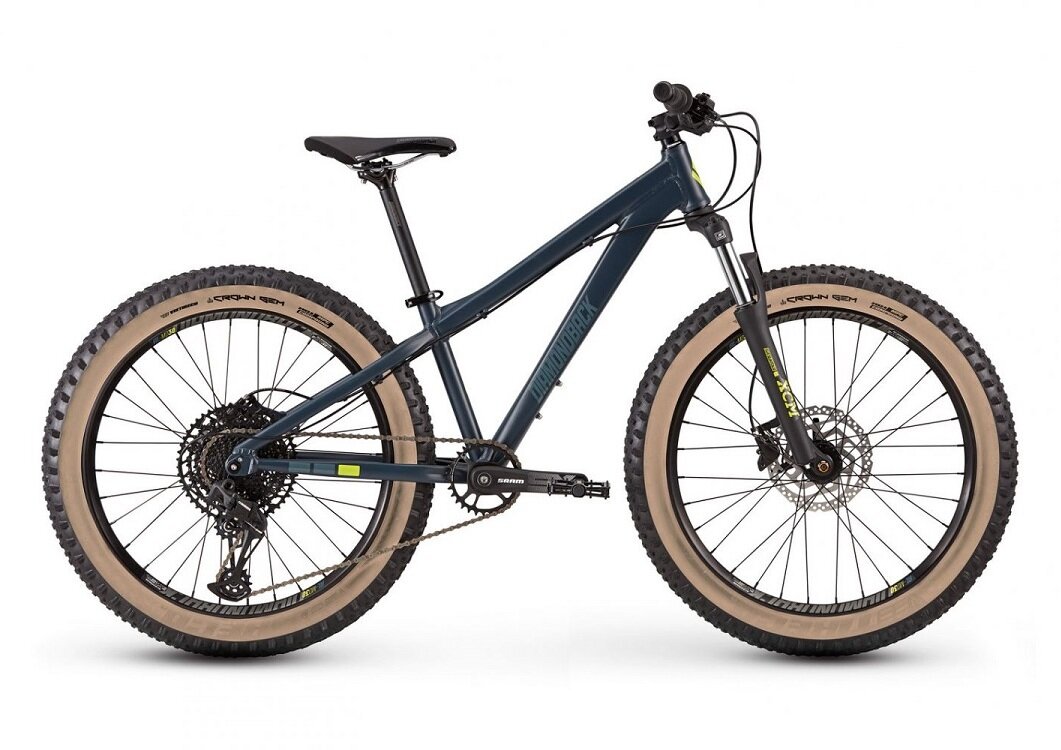

For the up-and-coming trail rider, Diamondback makes the Sync’r 24 — a completely capable mountain bike with top-shelf components for your little ripper. The 24-inch wheels and low-slung geometry provide just the right fit and handling for the smaller rider, and the 6061 aluminum alloy construction can take plenty of abuse. With big-bike components like a SRAM SX Eagle 1×12 drivetrain, 80mm Suntour fork, and Shimano hydraulic brakes, this bike gives young riders all they need to get to that next level. This model fits riders 53”-62” tall, aged approximately 8-12 years old.

FRAME
6061-T6 Aluminum Jr-24" Frame, Formed Tubing, Disc Specific w/ Replaceable Hanger
REAR SHOCK
N/A
FORK
SR Suntour XCM Boost 24" w/ 80mm Travel, 28mm Stanchions, 110x15mm Thru-Axle, w/ Preload Adjust
HEADSET
FSA IS-3/NO.11 Integrated Style
CRANKS
SRAM SX Eagle w/ Steel 30T "Narrow Wide"
BOTTOM BRACKET
Truvativ Powerspline
FRONT DERAILLEUR
N/A
REAR DERAILLEUR
SRAM SX Eagle 12 Speed
SHIFTER
SRAM SX Eagle, Trigger, 12 Speed
COGSET
SRAM SX 12 Speed 11-50T
CHAIN
SRAM SX 12 Speed
FRONT HUB
32h Aluminum 100x15mm Thru-axle, Sealed Cartridge Bearings, w/ CNC Disc Mount
REAR HUB
32h Aluminum Boost 142x12mm Thru-axle, 2 Sealed Cartridge Bearing, for SRAM XD w/ CNC Disc Mount
SPOKES
14g Stainless Steel
RIMS
Diamondback SL-240 Doublewall, 32h, Tubeless Compatible Rim, Not Taped
TIRES
Vee Tire Crown Gem 24x2.6" Tires, Non Tubeless Tire
BRAKE LEVERS
Shimano MT200
PEDALS
DB4L Aluminum Platform
HANDLEBAR
Diamondback, 720mm Wide, 15mm Rise, 31.8 Bar Bore
GRIPS
DB "Flanged" 135mm Silcone
STEM
Diamondback "Shortie", 45mm Reach, 31.8 Bar Bore
SEAT
DB Sync'r Jr. Saddle
SEATPOST
DB Aluminum Micro Adjust, 30.9mm
EXTRAS
Tool Kit, Tubeless Compatible Rims, will need to update to Tubeless Compatible Tires, Tubeless Valves, Tubeless Rim Tape and add Sealant
BRAKES
Shimano MT200
PRODUCT ID
4694
* Specifications are subject to change without notice
