Diamondback Hatch 2
Diamondback Hatch 2
SKU:210000046915
Couldn't load pickup availability
Details

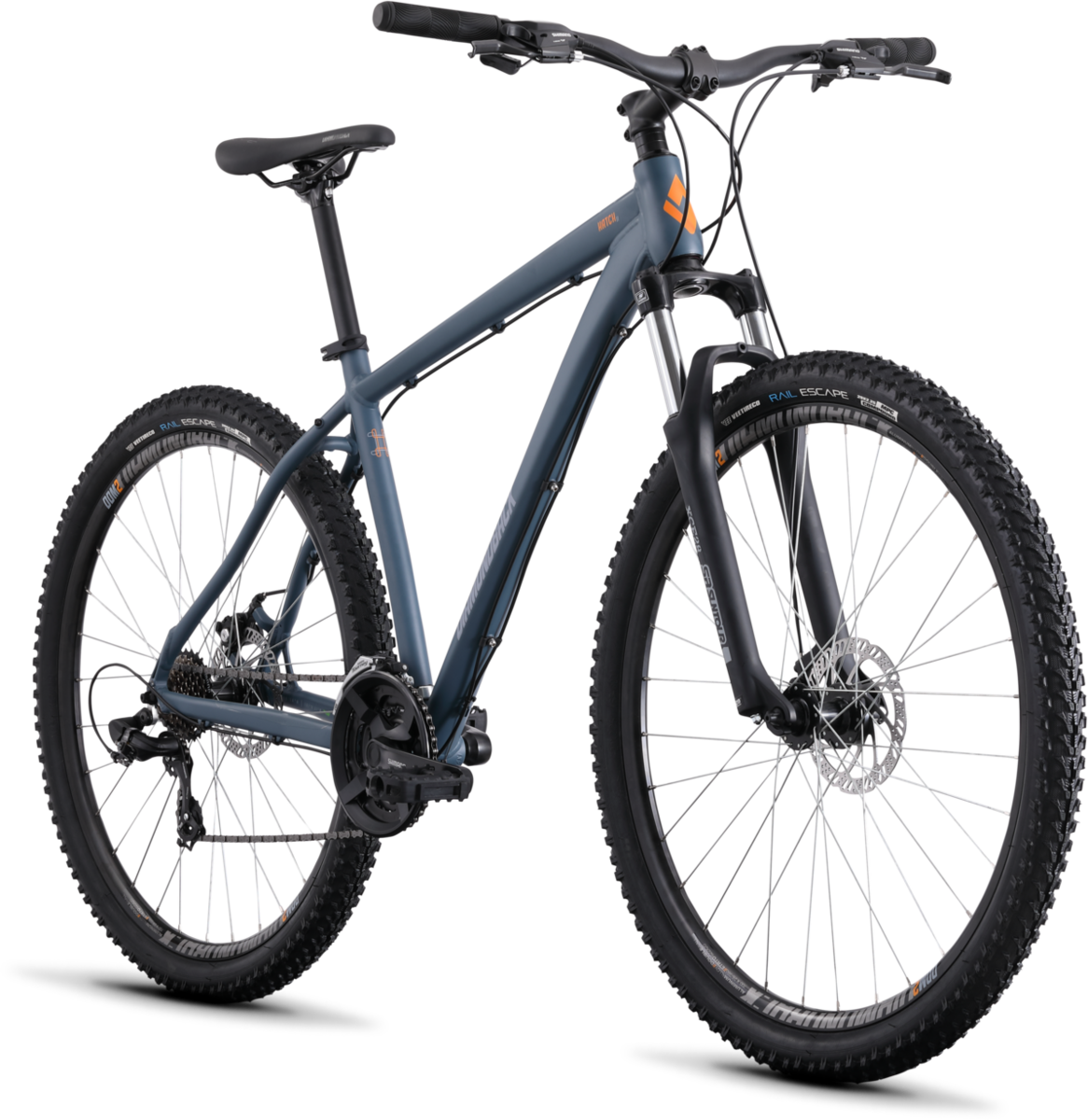

Get your start on the new Hatch 2 hardtail trail bike.
At home on dirt, gravel, and pavement, the Hatch 2 keeps the adventure going when it's time to explore the path less travelled. To give you the ideal balance of stability and easy handling, the Hatch features Progressive Wheel Sizing, using the wheel size that best matches the rider size. A 100mm travel fork and grippy 2.25-inch wide knobby tires help you easily roll over bumps and potholes with confidence. With 21 gear combinations at your fingertips, you'll always find a comfortable pedaling pace, and Tektro mechanical disc brakes provide reliable stopping power. Own your adventure without breaking the bank on the Hatch.
Wheel Size
X-Small – Small: 27.5-inch
Medium – X-Large: 29-inch
Specs
| Frame | Custom Formed AL-6061 Heat Treated Aluminum with Progressive wheel Sizing (27.5" - XS,S) (29" - M,L,XL) |
|---|---|

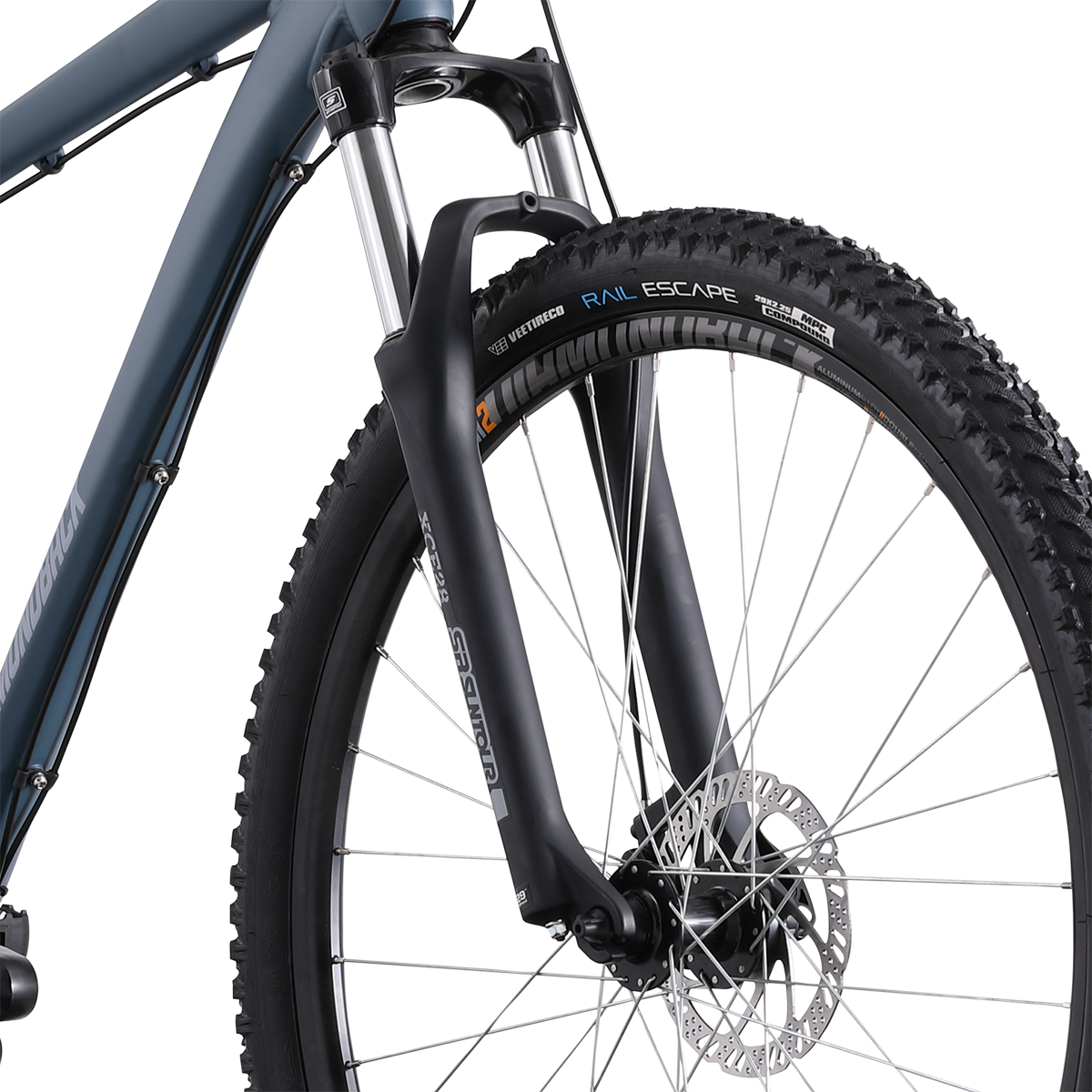

| Fork | SR Suntour XCE-28 100mm of Travel with Pre-Load Adjuster, IS Disc mounts |
| Rims | Aluminum MTB DDM-2 Double Wall, 32 hole |
| Hubs | Front: Formula DC-19 Aluminum 6 bolt Disc, Quick Release Rear: Formula DC-31, Aluminum 6 bolt Disc, Quick Release |
| Spokes | Steel J-Bend |
| Tires | Vee Tire Co. Rubber Rail Escape, 27.5" x 2.25 (XS, S) or 29" x 2.25 (M, L, XL) |
| Bottom Bracket | BSA, Sealed Cartridge Bearing |

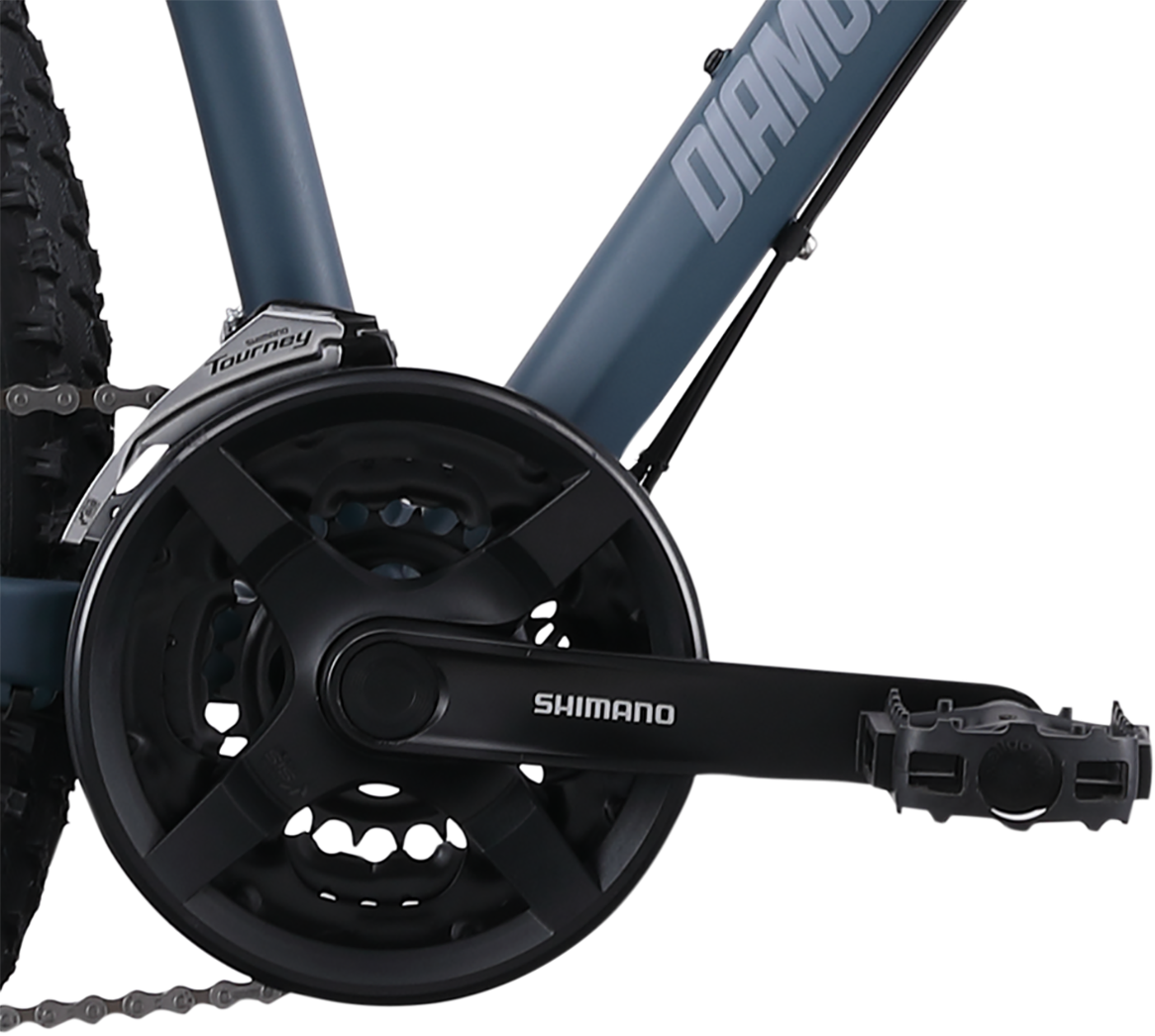

| Crankset | Shimano Tourney TY301, 42/34/24t |

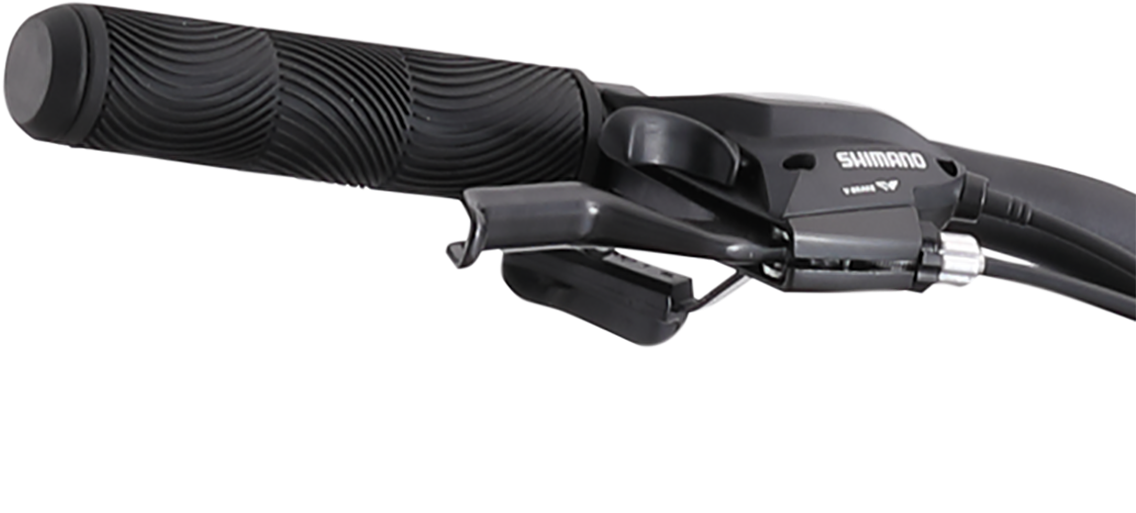

| Shifters | Shimano EF500 3x7 Speed EZ-Fire Shifter |
| Front Derailleur | Shimano Tourney TY500, Dual Pull |

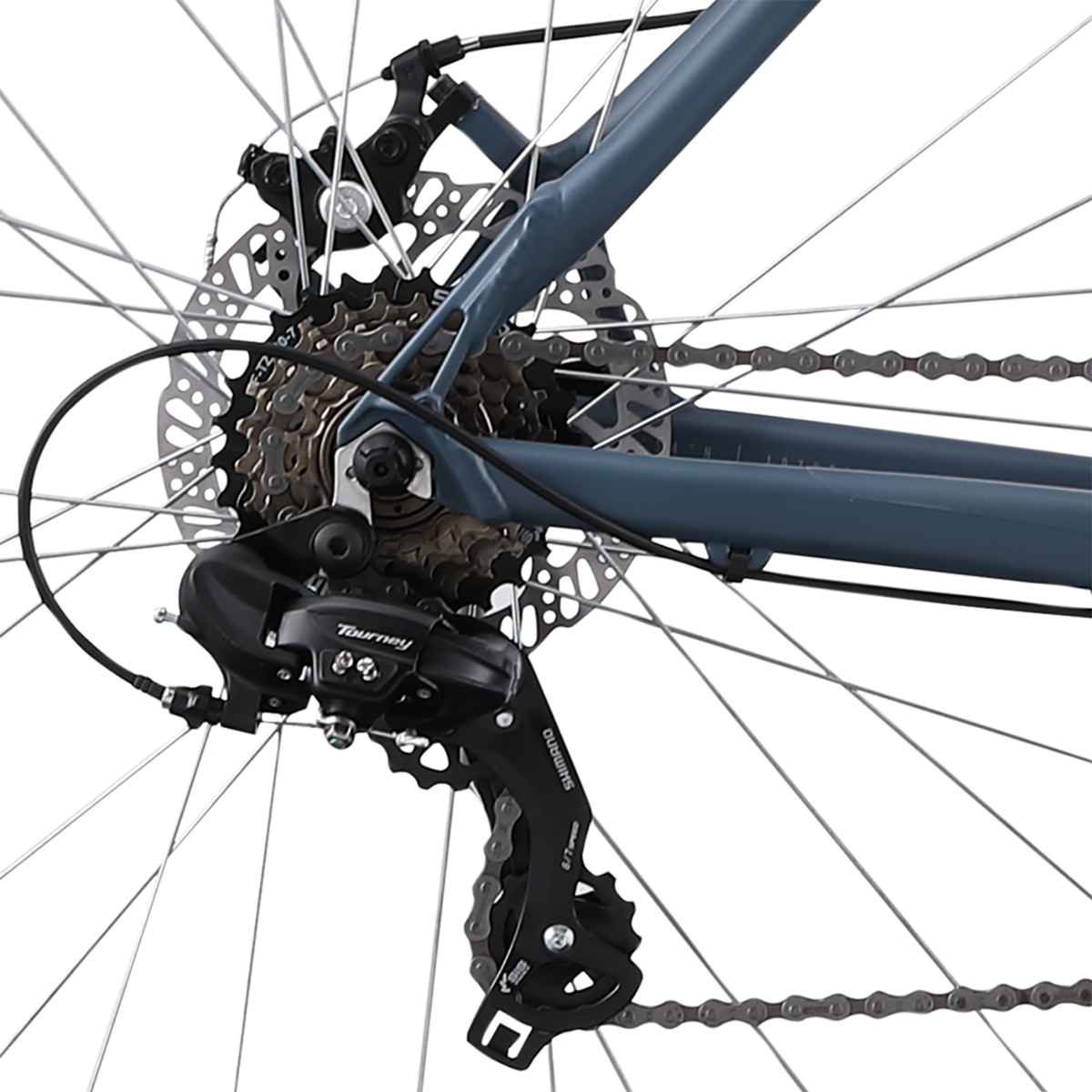

| Rear Derailleur | Shimano Tourney TY300 |
| Cassette/Freewheel | Shimano MFTZ500 14-28 Tooth Freewheel |
| Chain | KMX Z-7 |
| Brakes | Tektro M280 IS Post Mount, Mechanical Disc w 160mm Rotors F/R |
| Brake Levers | Shimano EF500 with 2-finger, Reach Adjustable Levers |

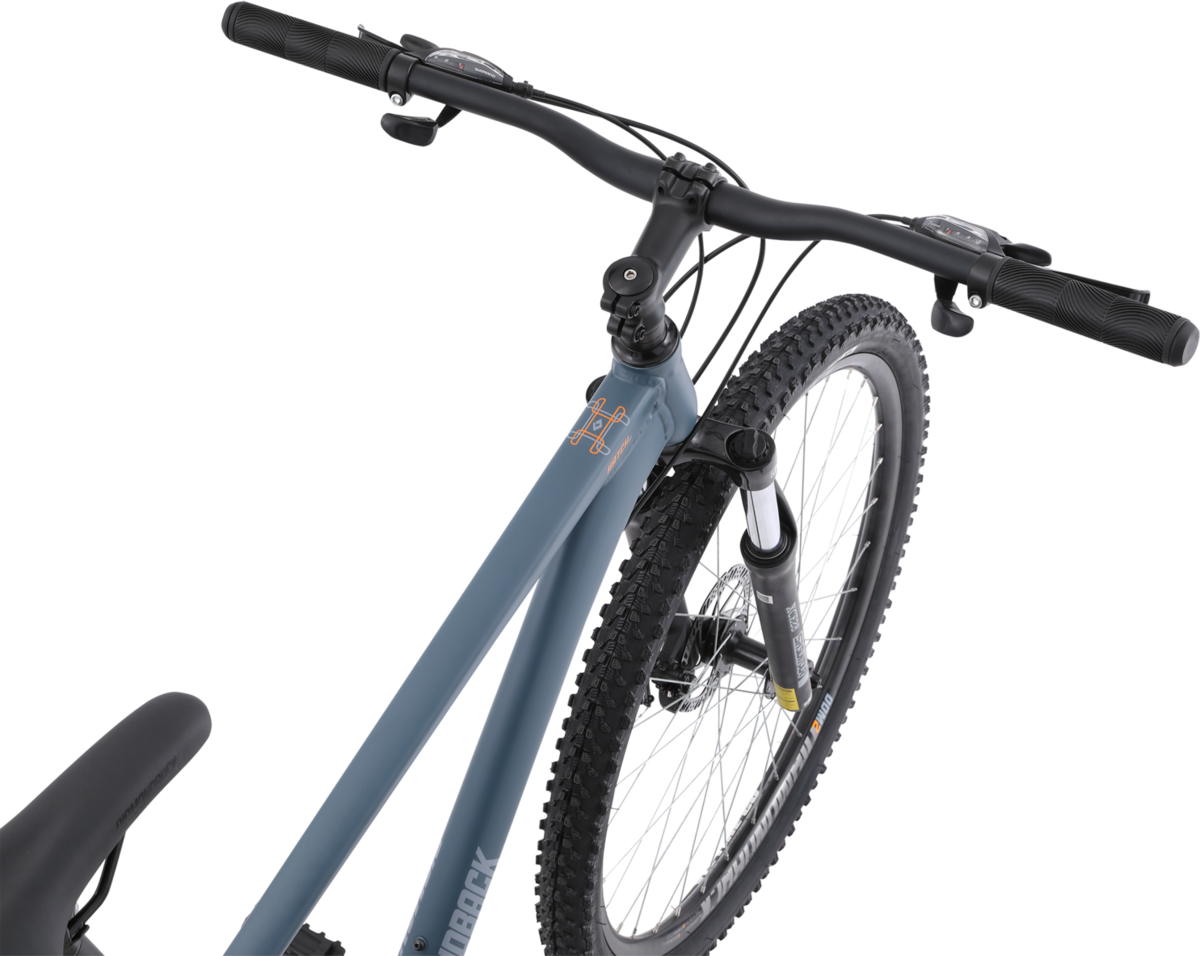

| Handlebars | Aluminum 31.8mm Bar, 25mm Rise |
| Tape/Grips | MTB Grip |
| Stem | Aluminum MTB 31.8mm Bar Bore Stem |
| Headset | 1-1/8 Semi Integrated, Cartridge Bearing |
| Seatpost | Aluminum 27.2 Post with 15mm Offset |
| Saddle | MTB Saddle |
| Pedals | Wellgo Plastic Body Platform |
| Accessories & Extras | Rack, Fender and Bottle Mounts |
