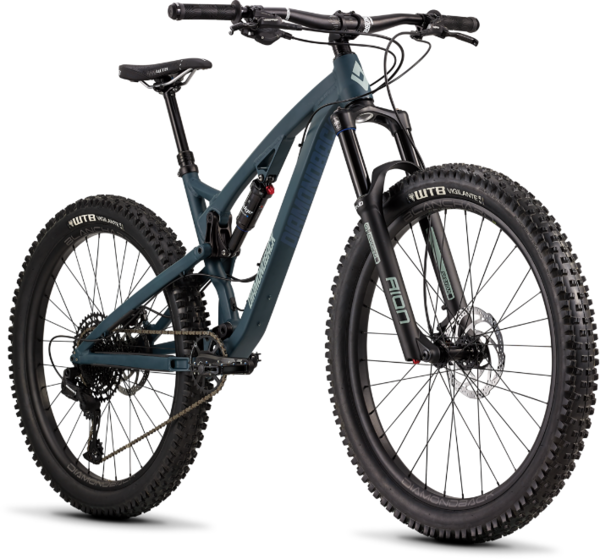

Diamondback Catch 1 / 27.5+
Diamondback Catch 1 / 27.5+
SKU:
Couldn't load pickup availability
Details
"Adventure bikes" are often plodding beasts of burden that sacrifice thrills in the pursuit of extra stability. Well, where's the adventure in that? We went a different route entirely. By adding 2.8-inch-wide, plus-size tires to our Level Link suspension, we've created a bike that absolutely rips on tight trails, but does so with the extra grip and control of a plus-size bike. Voilà —adventure made awesome. We gave the Catch a slack-but-not-too-slack front end. We wanted control on fast descents, but we weren't willing to give up maneuverability on tight trails. A SRAM SX Eagle 12 speed drivetrain gives you the gearing to tackle any terrain, and TRP Slate X2 hydraulic disc brakes bring this machine to a tidy stop. If you're looking to tackle rough terrain and want the ultimate in control without sacrificing the thrill of riding, the Catch is your bike.
Specs
| Frame | Catch 27.5+, 130mm Travel, Level Link Suspension Platform, Hydroformed Tubing, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube |
|---|---|

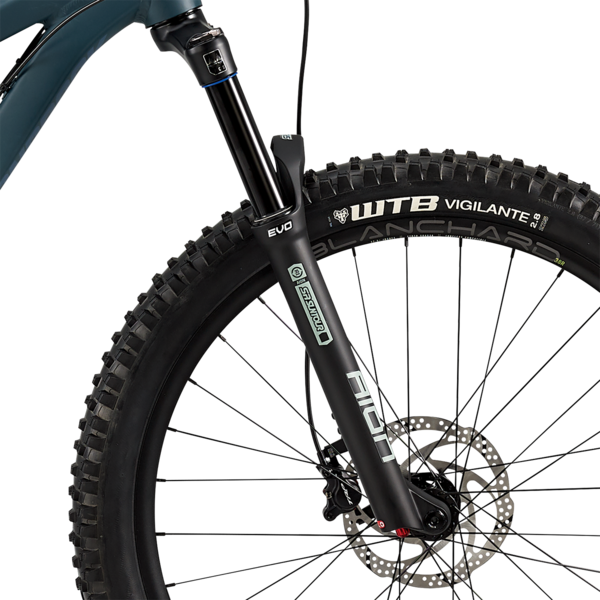

| Fork | SR Suntour Aion 27.5"+/29", 130mm Travel, Air Spring w/Rebound Adjust, 35mm Stanction, 1.5" Aluminum Taper Steerer, 110x15mm Thru-axle |
| Rear Shock | Suntour Edge R, 200x57mm, Rebound Adjust, 22.2mm Eyelet Width |
| Rims | Diamondback Blanchard 38R, Tubeless Ready, 32h |
| Spokes | 14g Stainless Steel |
| Tires | WTB Vigilante 27.5x2.8", Wire Bead |
| Bottom Bracket | SRAM Powerspline, 118/73 |

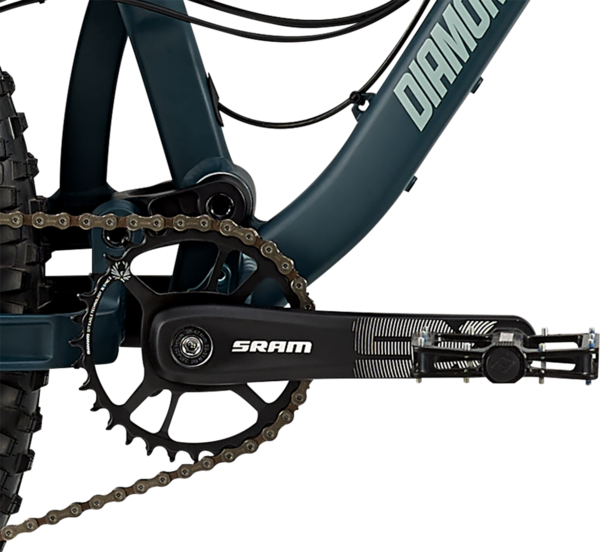

| Crankset | SRAM SX w/Steel 32T Direct Mount |
| Shifters | SRAM SX Eagle, 12 Speed |

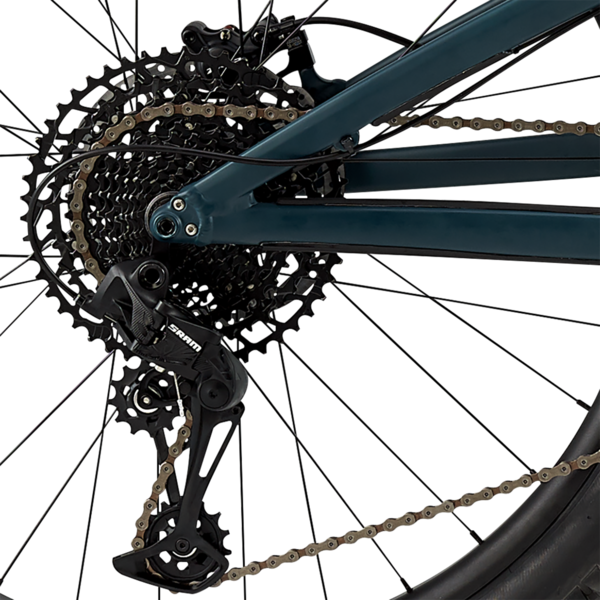

| Rear Derailleur | SRAM SX Eagle, 12 Speed |
| Cassette/Freewheel | SRAM PG1210, 12 Speed, 11-50T |
| Chain | SRAM SX Eagle, 12 Speed |
| Brakes | TRP Slate X2, w/180mm Front / 180mm Rear Rotors |

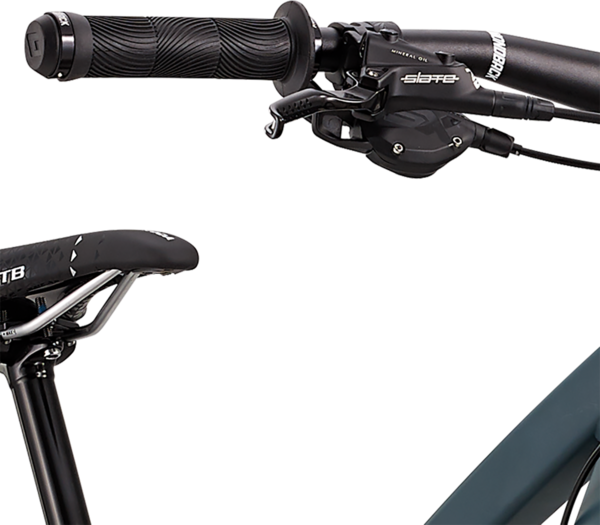

| Brake Levers | TRP Slate |

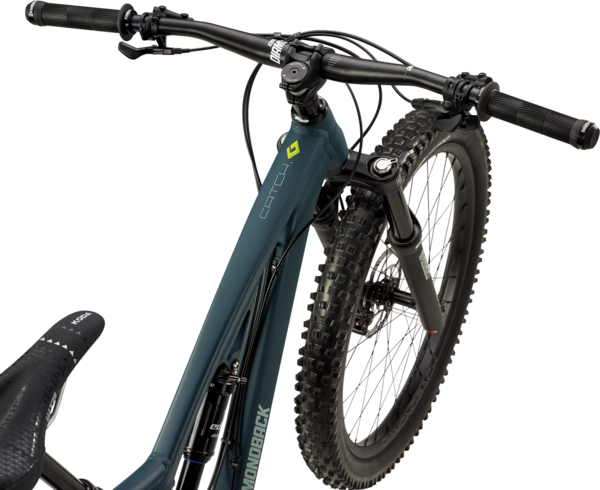

| Handlebars | DB35 Aluminum 760mm Wide, 15mm Rise, 35mm Bar Bore |
| Tape/Grips | DB Lock-On Grip |
| Stem | DB35 Aluminum 35mm Reach, 35mm Bar Bore |
| Headset | FSA No. 57, Sealed Cartridge |

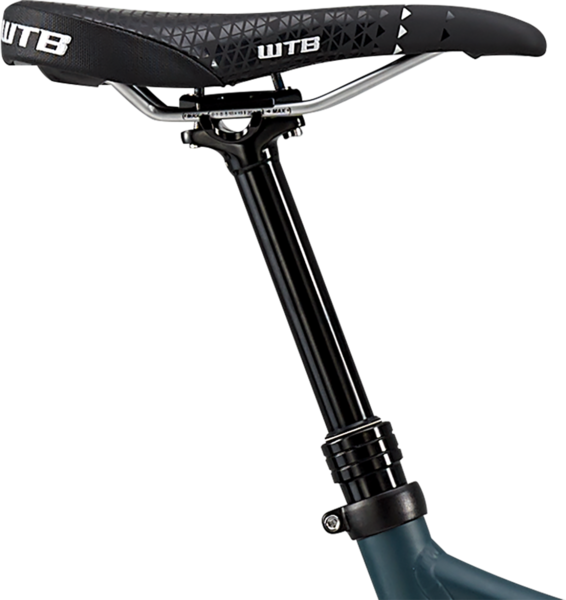

| Seatpost | Kindshock EXA Form 900i, Internal Dropper, 31.6mm w/1x Remote |
| Saddle | WTB Koda Comp |
| Pedals | DB Aluminum Platform w/ Replaceable Pins |
| Accessories & Extras | Tool Kit, DB Shock Pump, DB Mud Guard, Spare RD Hanger |
