Diamondback Hatch 1

Diamondback Hatch 1


Regular price $449.99 USD
Regular price Sale price $449.99 USD


Get your start on the new Hatch 1 hardtail trail bike.

At home on dirt, gravel, and pavement, the Hatch 1 keeps the adventure going when it's time to explore the path less travelled. A 100mm travel fork and grippy 2.25-inch wide knobby tires help you easily roll over bumps and potholes with confidence. With 21 gear combinations at your fingertips, you'll always find a comfortable pedaling pace, and Tektro V-brakes will keep your speed under control. Introduce yourself to the adventure a hardtail can bring without breaking the bank.

Wheel Size
X-Small – Small: 27.5-inch
Medium – X-Large: 29-inch


Frame Custom Formed AL-6061 Heat Treated Aluminum with Progressive wheel Sizing (27.5" - XS,S) (29" - M,L,XL)

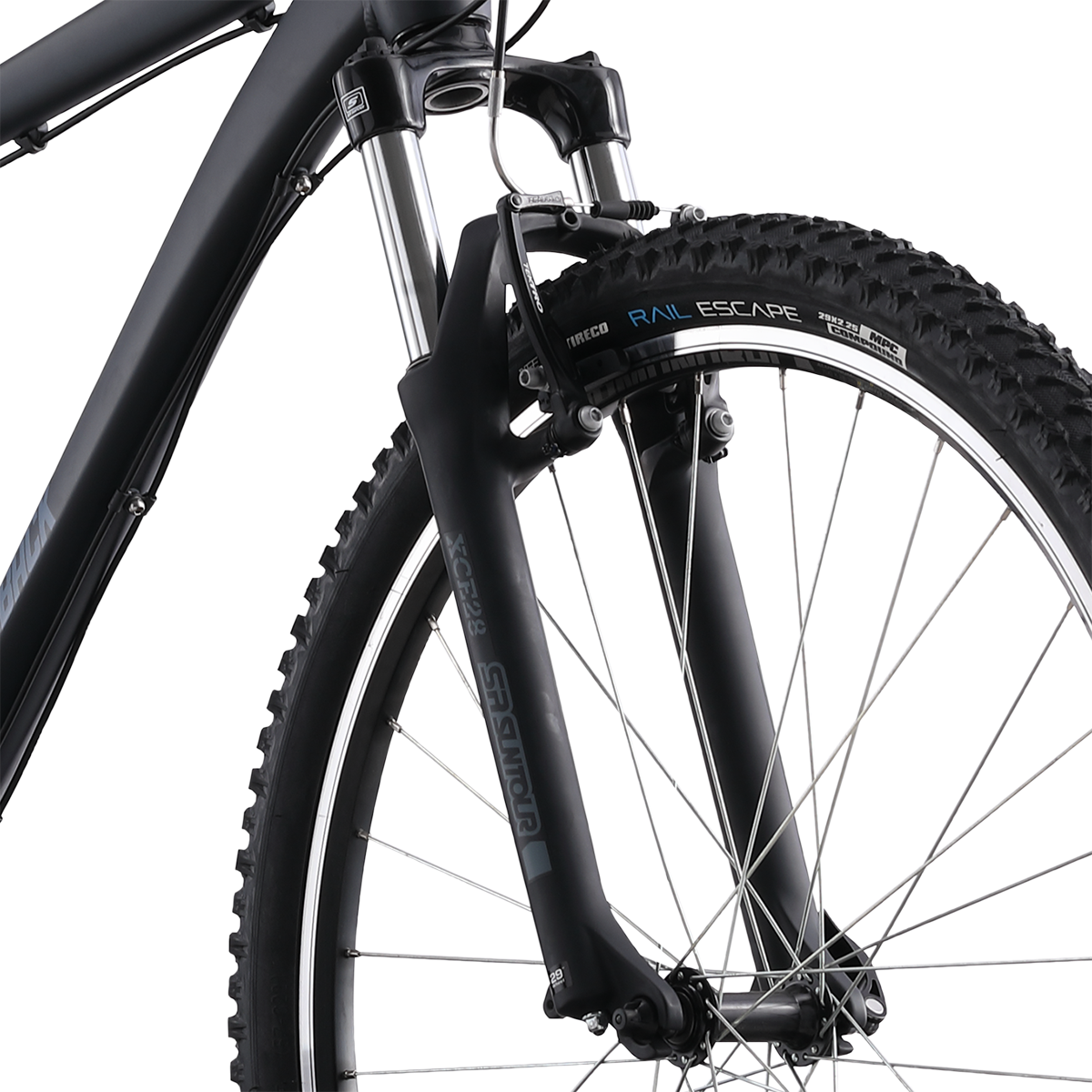

Fork SR Suntour XCE-28 100mm of Travel with Pre-Load Adjuster, for post mount V-brakes
Rims Aluminum MTB DBM-2 Double Wall, 32 hole
Hubs Front: Formula OV-31F Quick Release
Rear: Formula OV-31R Quick Release
Spokes Steel J-Bend
Tires Vee Tire Co. Rubber Rail Escape (27.5" - XS,S) (29" - M,L,XL)
Bottom Bracket Sealed Cartridge Bearing
Crankset Shimano Tourney TY301, 42/34/24t
Shifters Shimano EF-41 3x7 Speed EZ-Fire Shifter
Front Derailleur Shimano Tourney TY500, Dual Pull
Rear Derailleur Shimano Tourney TY300
Cassette/Freewheel Shimano MFTZ500 14-28 Tooth Freewheel
Chain KMX Z-7
Brakes Tektro 855AL V-Brake
Brake Levers Shimano EF41 with 2-finger Reach Adjustable lever
Handlebars Aluminum 31.8mm Bar, 25mm Rise
Tape/Grips MTB Grip
Stem Aluminum MTB 31.8mm Bar Bore Stem
Headset 1-1/8 Semi Integrated, Cartridge Bearing

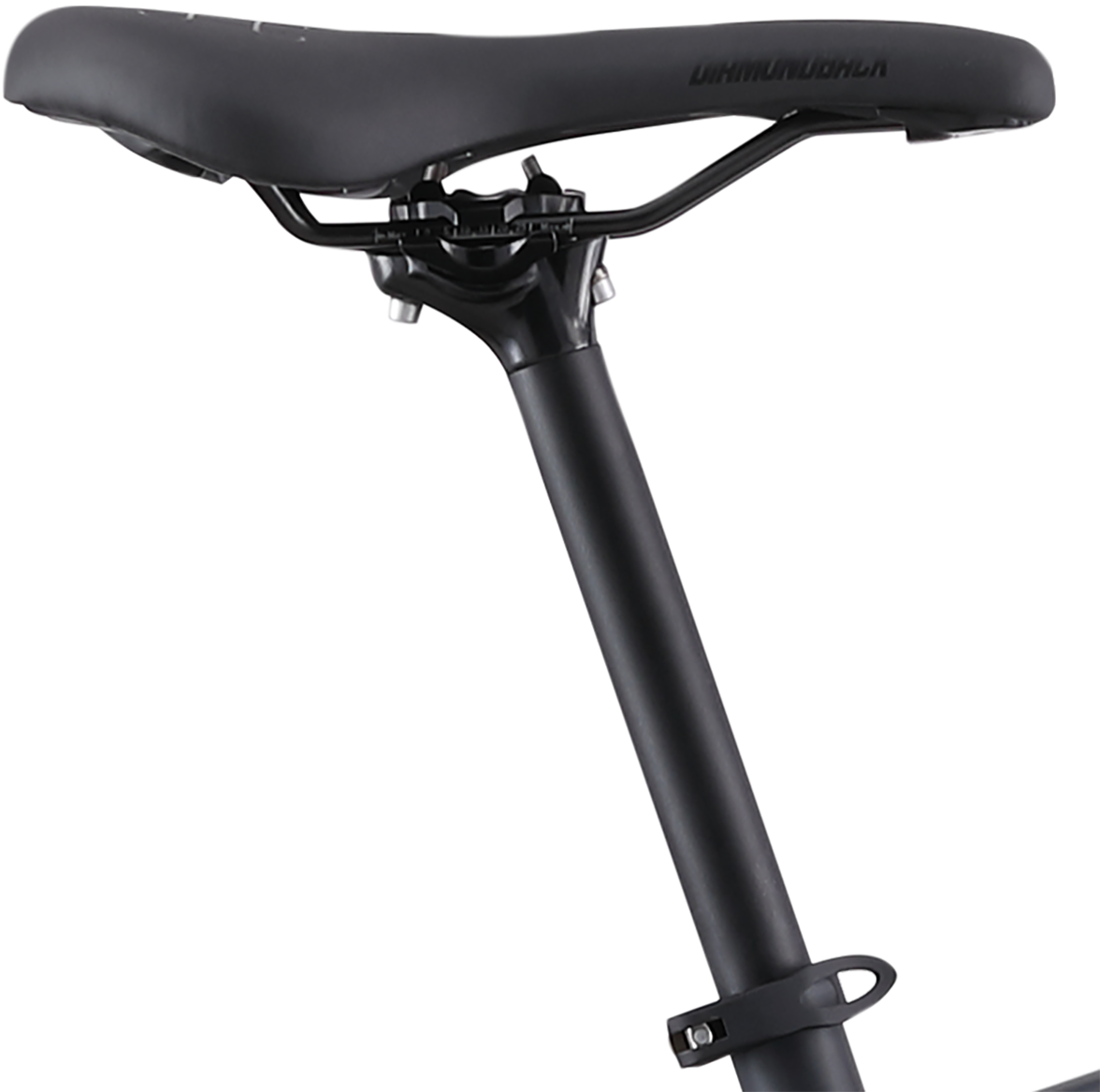

Seatpost Aluminum 27.2 Post with 15mm Offset
Saddle MTB Saddle
Pedals Wellgo Plastic Body Platform
Accessories & Extras Rack, Fender, and Bottle Mounts
