Diamondback Line / 24

Diamondback Line / 24


Regular price $499.99 USD
Regular price $699.99 USD Sale price $499.99 USD
Sale Sold out
In stock and ready to ship from our warehouse.

**Complete Bikes and overweight products will incur addtional shipping charges. We will contact you with an accurate estimate.**

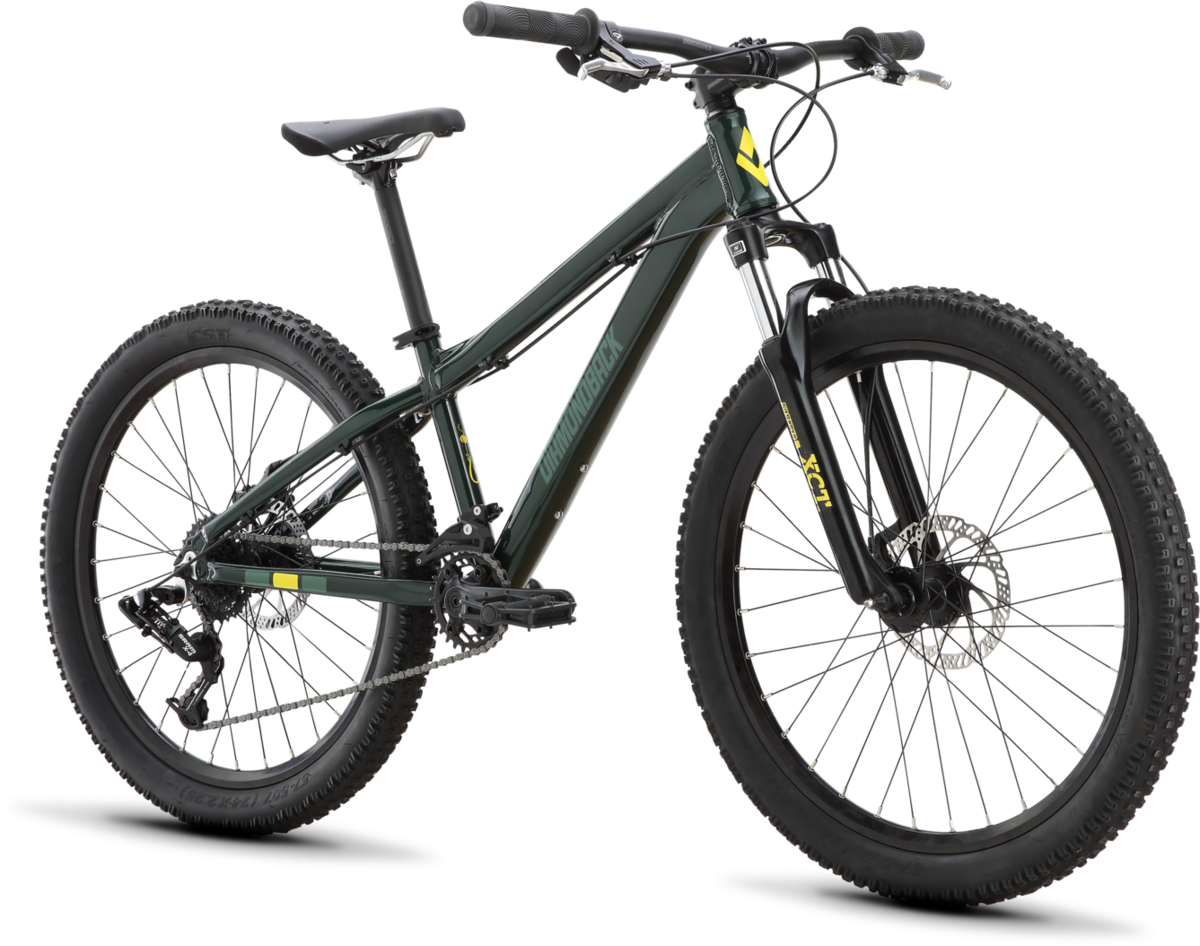

A bike they can grow with.

A bike they can grow with, the Line 24 is a junior version of our do-anything hardtail mountain bike. Equipped to handle the abuse of real mountain bike trails and daily use around the neighborhood, it's made from the same aluminum alloy as our full-size bikes, so it's practically indestructible. An SR Suntour fork performs like the big people's bikes, giving your ripper-to-be 80mm of front suspension travel. The 24-inch wheels are stiff and stable, shod with aggressive 2.25-inch wide Vee Rubber tires: perfect for tearing it up in the woods. Disc brakes and a wide-range SRAM 1x8 drivetrain are real performance features, underscoring that the Line 24 is a legit mountain bike—only smaller. This model fits riders 53"-62" tall, aged approximately 8-12 years old.


Frame 6061 T-6 Aluminum Jr-24" Frame, Formed Tubing, Disc Specific w/ Replaceable Hanger
Fork SR Suntour XCT JR 24", 80mm Travel, 28mm Stanchion, Aluminum Lowers, w/ Preload Adjust
Rims 32h Diamondback Doublewall
Hubs Front: 32h Aluminum w/ CNC Disc Mount
Rear: 32h Aluminum w/ CNC Disc Mount, Cassette
Spokes 14g Stainless Steel
Tires Vee Tire Crown Gem, 24x2.25"
Bottom Bracket Sealed Cartridge
Crankset Aluminum Arm, w/ 32T Steel Single Ring, 155mm
Shifters SRAM X4 8 Speed
Front Derailleur Upper Chain Guide, 34.9mm Clamp Diameter
Rear Derailleur SRAM X4, 8 Speed
Cassette/Freewheel SRAM PG820 Cassette, 8 Speed, 11-32T
Chain KMC Z82, 8 Speed
Brakes Tektro Aries Mechanical Disc, w/ 160mm Rotors
Brake Levers Tektro 2 Finger Aluminum Linear w/ Reach Adjust
Handlebars Diamondback, 720mm Wide, 15mm Rise, 31.8mm Bar Bore
Tape/Grips DB "Flanged" 135mm Silicone
Stem Diamondback "Shortie", 45mm Reach, 31.8mm Bar Bore
Headset FSA IS-3/NO.11 Integrated Style
Seatpost Aluminum Micro Adjust, 27.2mm
Saddle DB Sync'r Jr. Saddle
Pedals DB4L Resin Platform
