Diamondback Overdrive 3 / 29

Diamondback Overdrive 3 / 29


Regular price $1,399.99 USD
Regular price Sale price $1,399.99 USD


Our top aluminum 29er hardtail is perfectly equipped for speed.

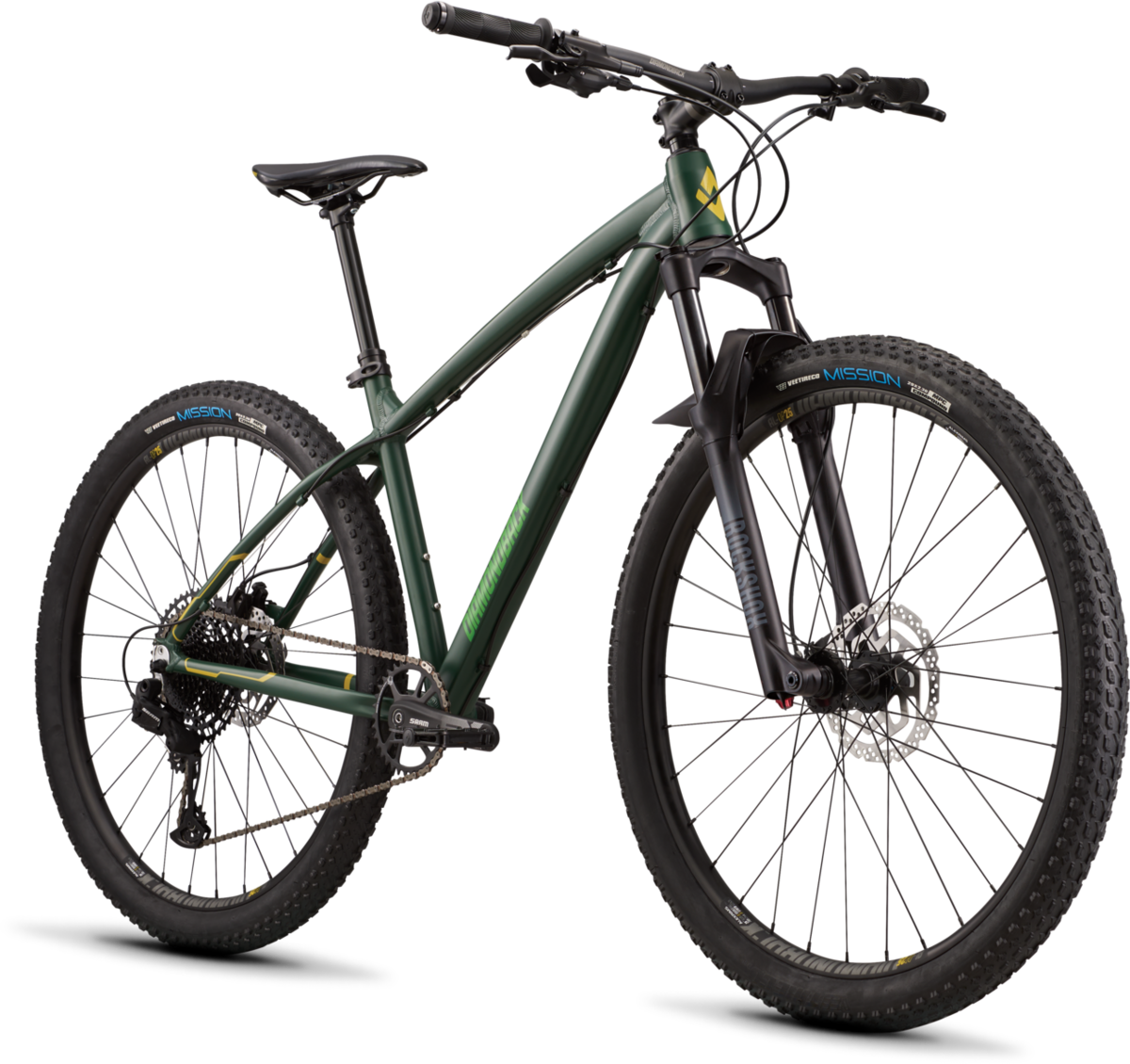

The Overdrive 29 3 is our top-level 29er aluminum hardtail. It's built on a strong and light aluminum frame to keep you nimble and in control for the ultimate journey. This trail bike is decked out with a RockShox Judy Silver TK SOLO AIR spring 100mm travel fork to keep you flowing through technical terrain and a SRAM SX 1x12-speed drivetrain to maximize your speed and efficiency up and down the hills. Shimano hydraulic disc brakes offer great modulation. For charging the singletrack, big climbing days, and jumping into your local cross-country races, the Overdrive 29 3 offers a lively ride.


Frame Overdrive 29" Butted 6061-T6 Aluminum Formed Top / Down Tube, Machined Headtube, Forged Dropouts w/ Replaceable Hanger, Quick Release

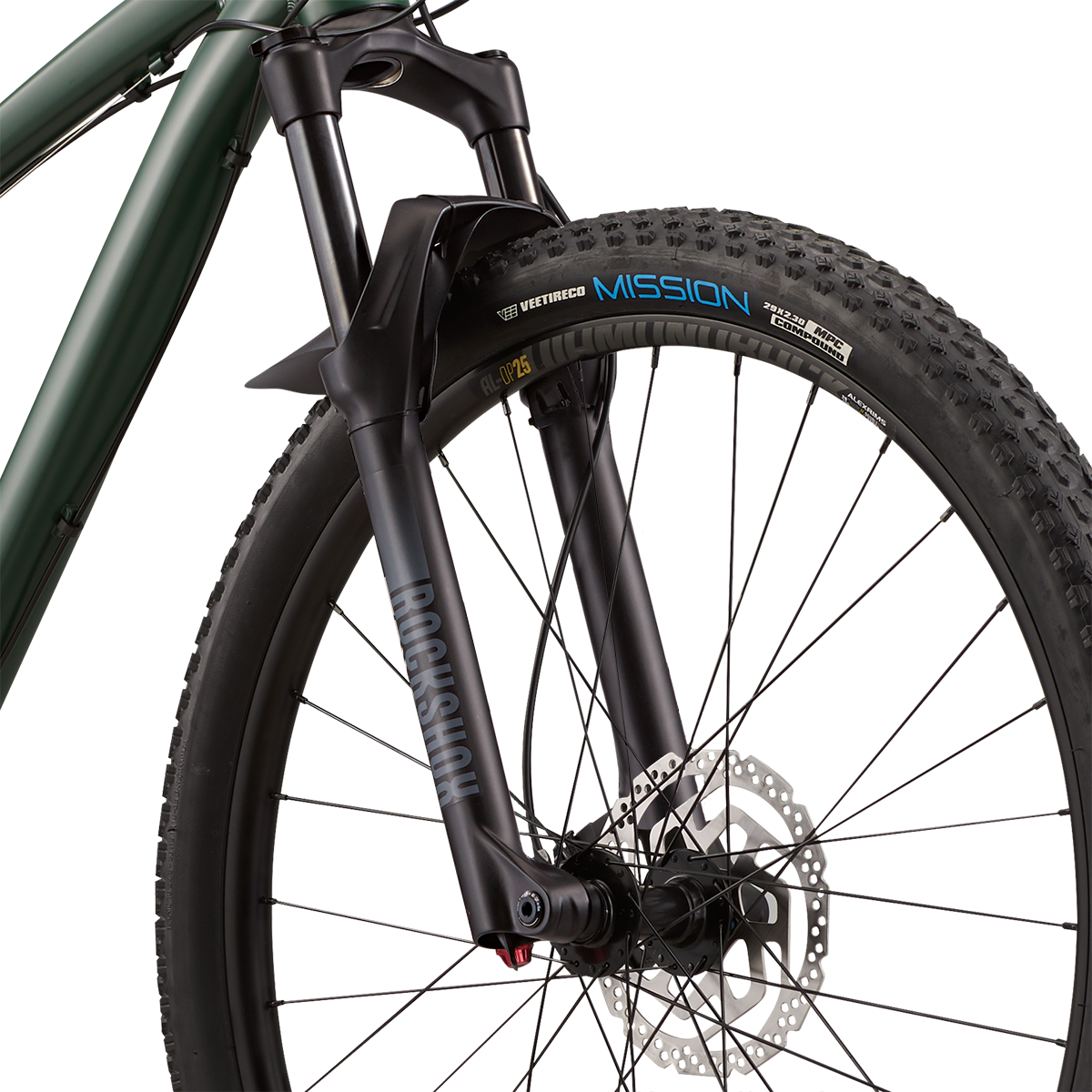

Fork Rockshox Judy Silver TK SOLO AIR Spring, Turn Key Lockout, 29" 100mm Travel, Boost 15x110 Stealth Thru Axle, Aluminum Steerer
Rims DB DP-25 Double Wall Alloy Rim, 32H
Hubs Front: 32H Aluminum 15mm Thru Axle Disc
Rear: 32H Aluminum Cassette, 141mm Boost Quick Release, Disc
Spokes 14g Steel
Tires VEE Rubber Mission 29" x 2.25
Bottom Bracket SRAM Powerspline

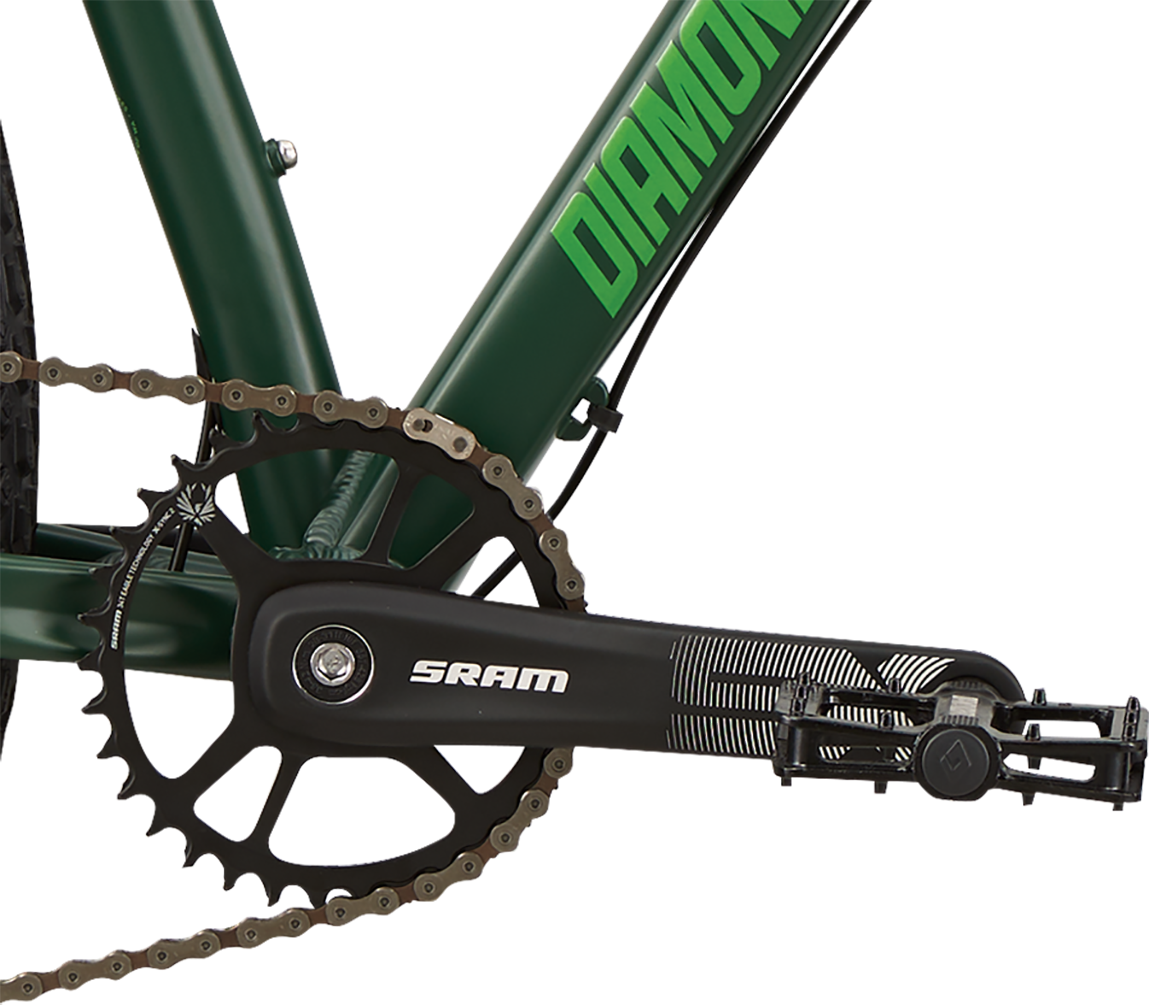

Crankset SRAM SX Eagle w / X-Sync 32 Tooth Chainring
Shifters SRAM SX Eagle 12 Speed

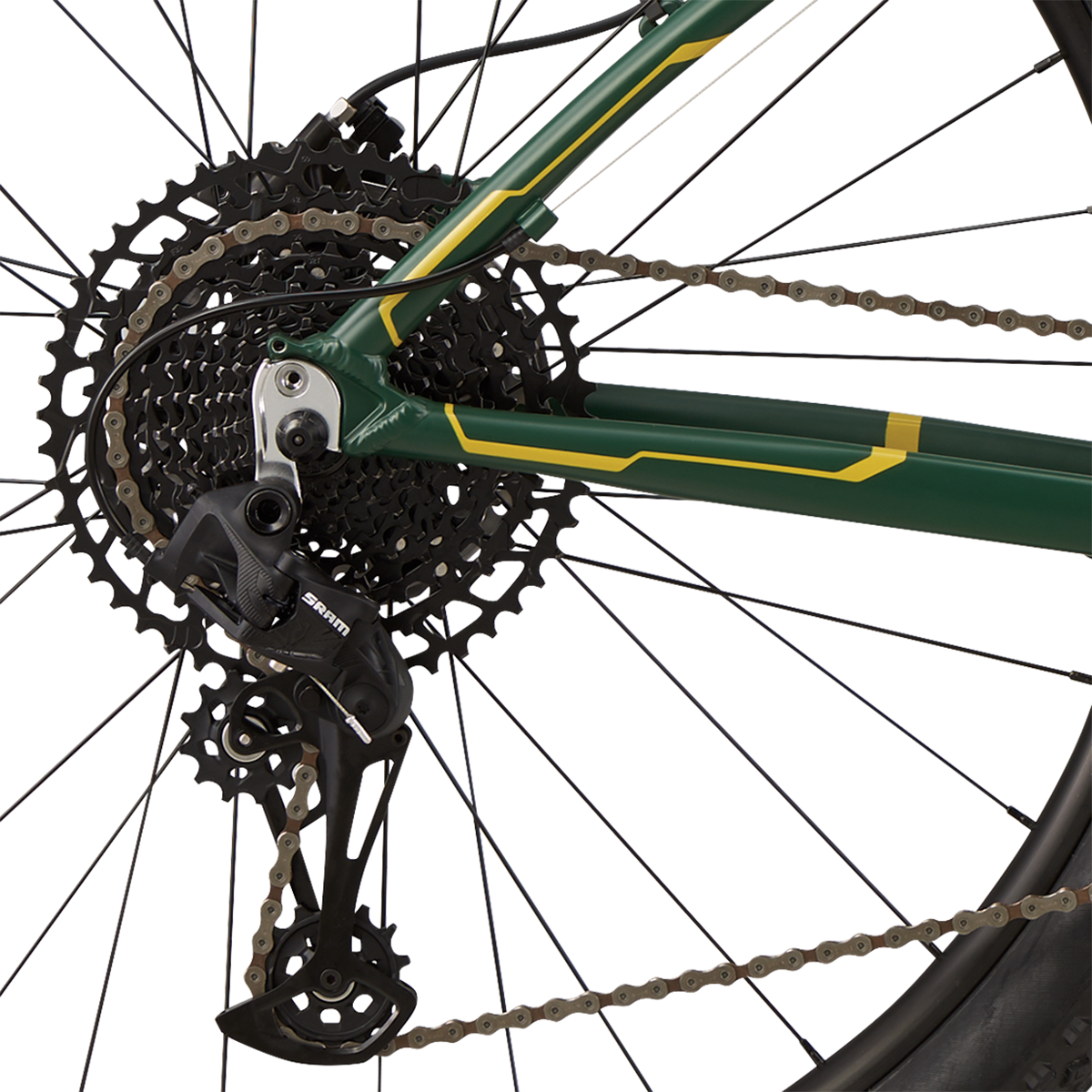

Rear Derailleur SRAM SX Eagle 12 speed
Cassette/Freewheel SRAM 1210 PowerGlide Eagle 11-50t 12 speed
Chain SRAM SX Eagle 12 speed
Brakes Radius BH-960 Hydraulic Disc w/ 180mm Front / 160mm Rear Rotors

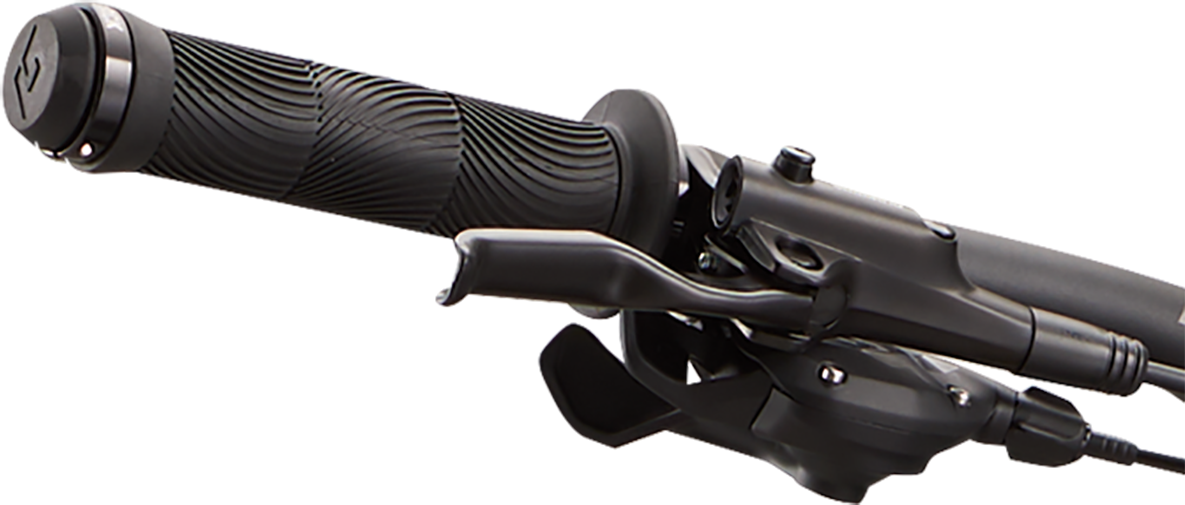

Brake Levers Radius Hydraulic

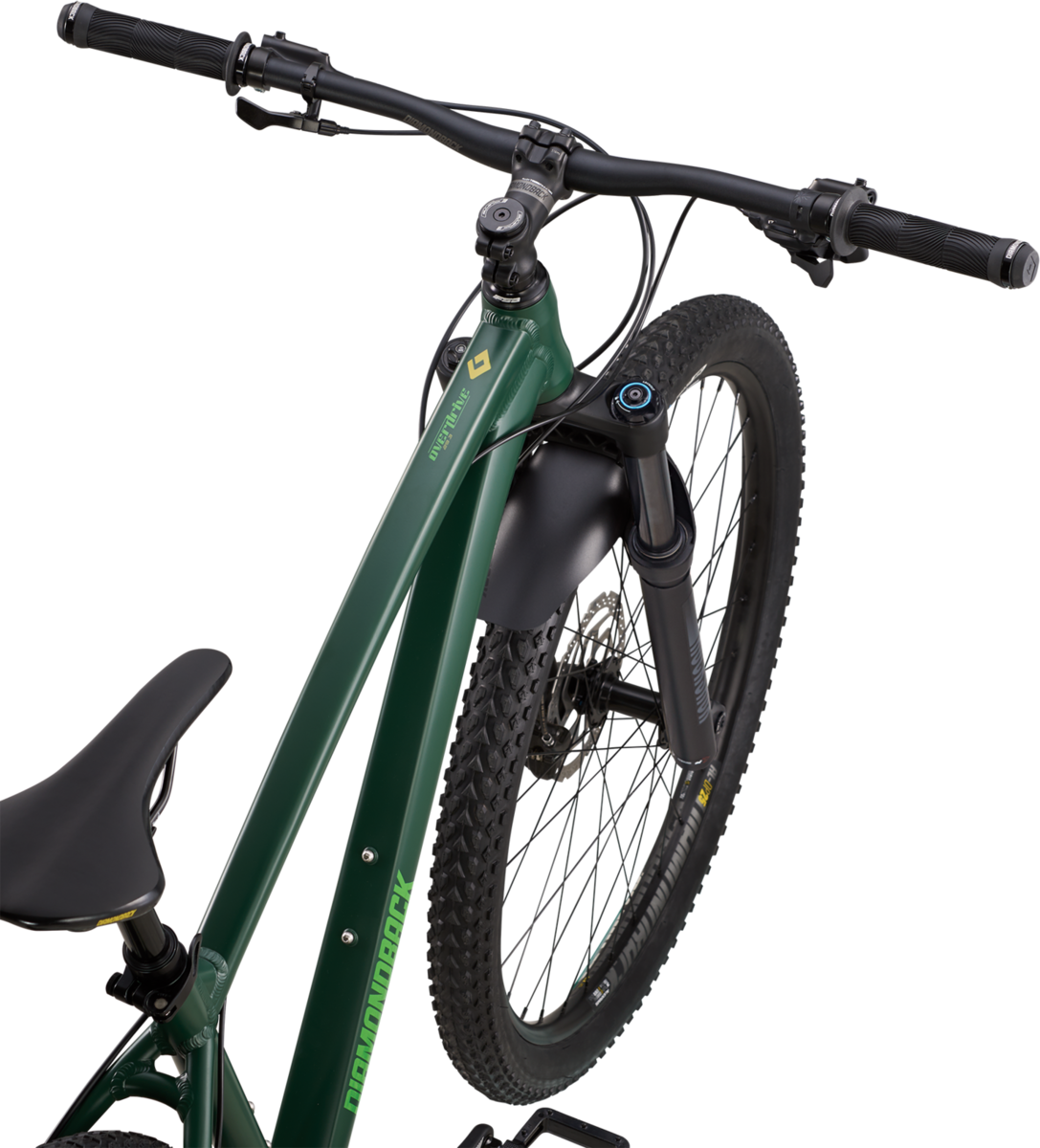

Handlebars Diamondback, 740mm Wide, 15mm Rise, 31.8 Bar Bore
Tape/Grips DB "Flanged" Lock-on, 135mm Silicone
Stem DB 3D Forged, 7° Rise, 31.8 Bar Bore
Headset FSA IS 3E / No.11 integrated headset

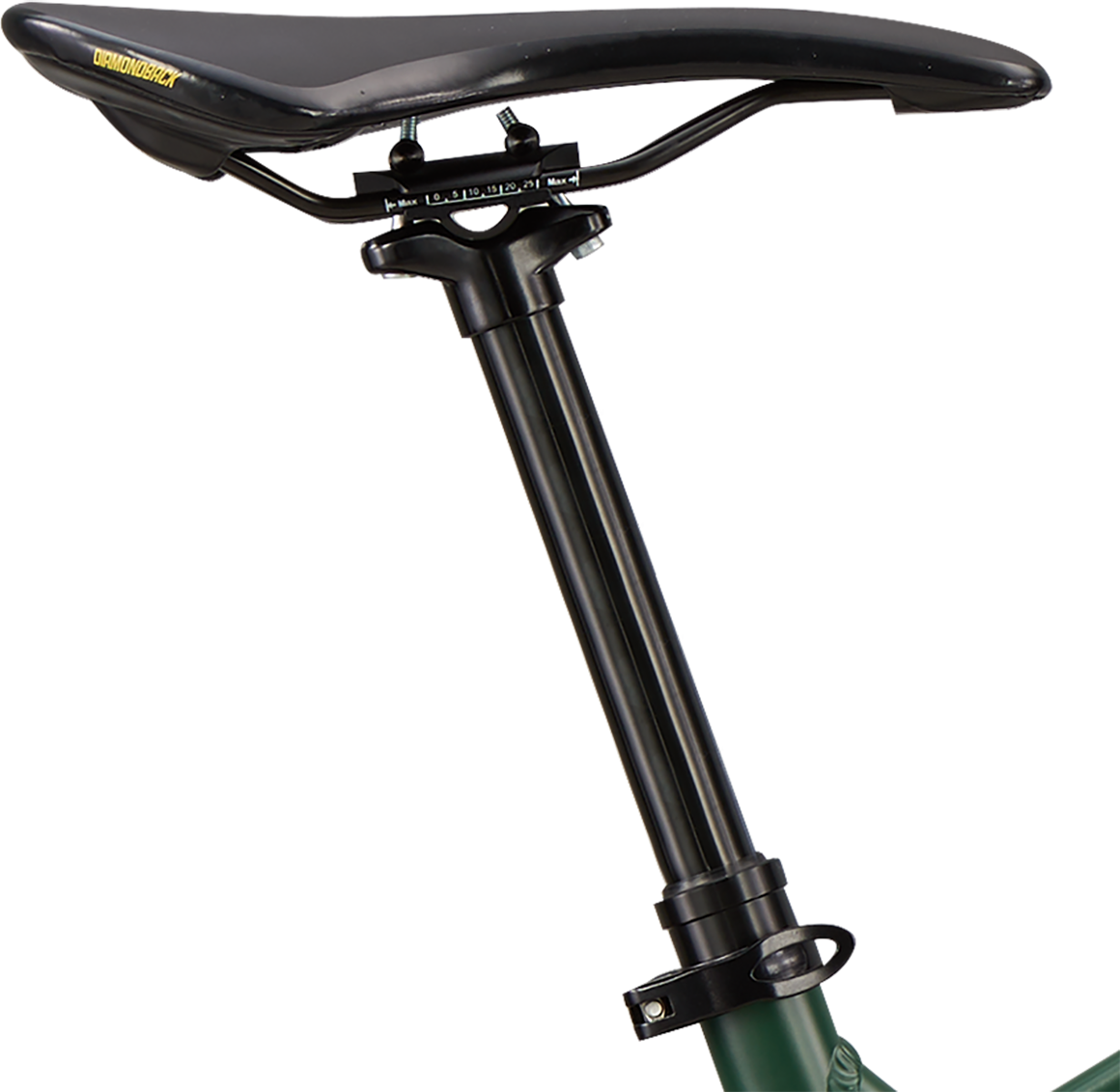

Seatpost DB Aluminum Micro Adjust, 30.9mm
Saddle DB Race M-series Saddle
Pedals DB4L Aluminum Platform w/ Replaceable Pins
Accessories & Extras Tool Kit
