Diamondback

Diamondback Release 5C / 27.5

Diamondback Release 5C / 27.5

SKU:210000051008

Regular price $3,499.99 USD
Regular price $5,499.99 USD Sale price $3,499.99 USD
Sale Sold out
Size
Color
In stock and ready to ship from our warehouse.

**Complete Bikes and overweight products will incur addtional shipping charges. We will contact you with an accurate estimate.**

Details

We pulled out all the stops on our flagship full-suspension trail bike.

You can't have it all…Really? Nobody told that to the Release 5C. Our top-shelf trail bike is the embodiment of new-school technology. Thanks to our Level Link suspension, the Release 5 C absolutely levels the kind of drops and rock gardens that stymie bikes with even more suspension travel. At the same time, our patent-pending design allows the Release to accelerate and climb with the kind of blazing efficiency you'd normally expect from a wispy, featherweight race rig.

The Release 5C, in a nutshell, is the perfect all-rounder. The bike's modern geometry—long in the front, short in the rear, low in the bottom bracket—lends the bike stability at high speeds without sacrificing agility when the trails get tight. What's more, we've decked this machine out with a peerless parts kit that includes the absolutely bomber Fox 36 Performance Elite Float fork and Fox Performance Elite Float DPX2 rear shock, an ultra-precise SRAM GX Eagle 12-speed drivetrain, a wheelset with e*thirteen LG1 EN rims and Novatec hubs, and quick-stopping SRAM G2 RS hydraulic disc brakes with 180mm rotors. A KS LEV Integra dropper post and Race Face cockpit components round out the stellar package.

Specs

Frame Carbon Release 27.5, Monocoque Carbon Front and Rear Triangle, 130mm Travel, Level Link Suspension Platform, Euro Standard Threaded BB, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube, Post Mount Disc Tabs

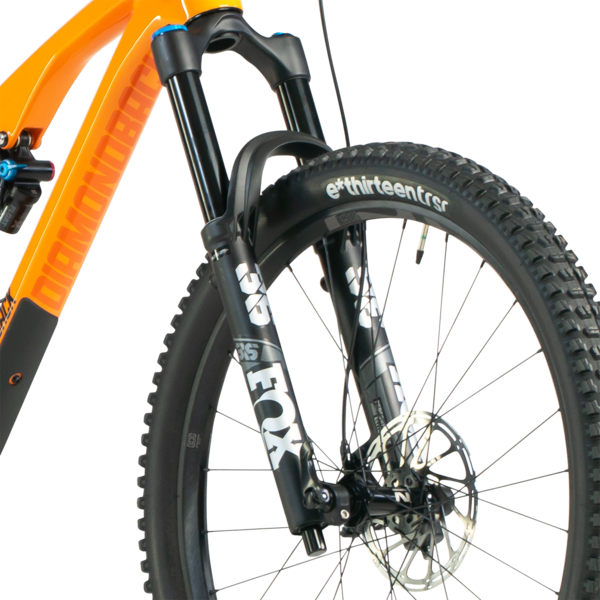

Fork Fox 36 Performance Elite Float, 27.5", 150mm Travel, Fit4, 3 Position Dampener, Rebound Adjust, 1.5" Tapered Steerer, 110x15mm Thru-axle
Rear Shock Fox Performance Elite Float DPX2, 3 Position Lever w/Open Mode Adjust, LV EVOL, 200x57mm, 22.2mm Eyelet Width
Rims e*thirteen LG1 EN Plus, w/TRS Plus Aluminum 27.5", 30mm internal width, 28h
Hubs Front: Novatec XD641, 32h Aluminum110x15mm Boost Thru-axle, Sealed Cartridge Bearing
Rear: Novatec XD642, 32h Aluminum Boost 148x12mm Thru-axle, 4 Sealed Cartridge Bearing, w/CNC Disc Mount, XD Cassette Body
Spokes 2.0/1.8/2.0 Butted Stainless Steel
Tires e*thirteen TRS Race SS 2.35 Tire Tubeless Ready Single Ply Apex Aramid Reinforced, Slow Rebound, Dual Compound
Bottom Bracket SRAM DUB Outboard Bearing

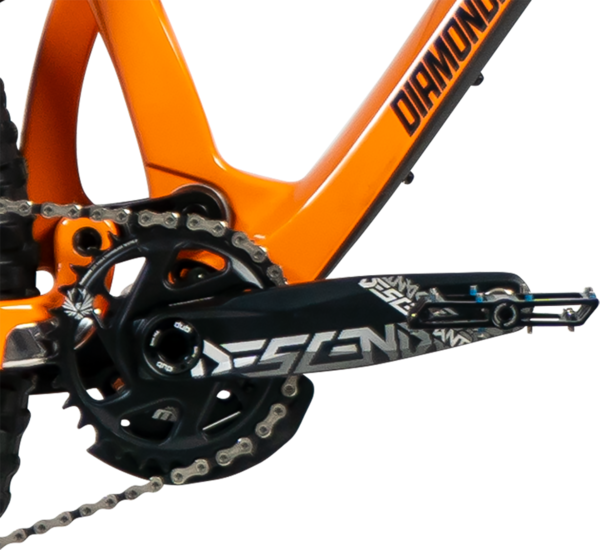

Crankset SRAM Descendant 7K Eagle w/32T Direct Mount

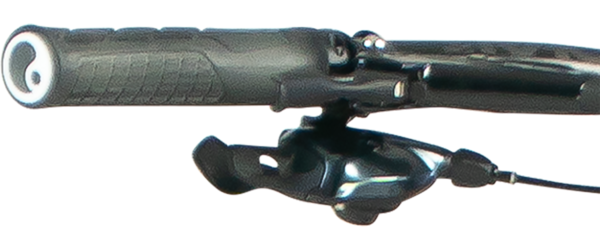

Shifters SRAM GX Eagle, 12 Speed
Front Derailleur MRP XCG V2 Aluminum Bash Guard, 32T, ISCG-05

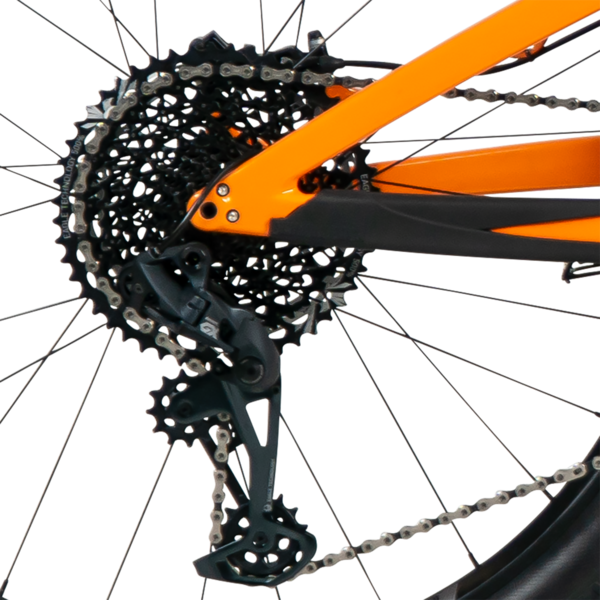

Rear Derailleur SRAM GX Eagle, 12 Speed
Cassette/Freewheel SRAM XG-1275 Eagle, 12 Speed, 10-50T
Chain SRAM GX Eagle, 12 Speed
Brakes SRAM G2 RS, 4 Piston, Hydraulic Disc, w/180mm Front / 180mm Rear Centerline Rotors
Brake Levers SRAM G2 RS
Handlebars Race Face Turbine R, 780mm Wide, 20mm Rise, 35mm Bar Bore
Tape/Grips Ergon GE10 Evo Lock-On
Stem Race Face Æffect R 35, 40mm Reach, 35mm Bar Bore
Headset FSA No. 57 Sealed Cartridge

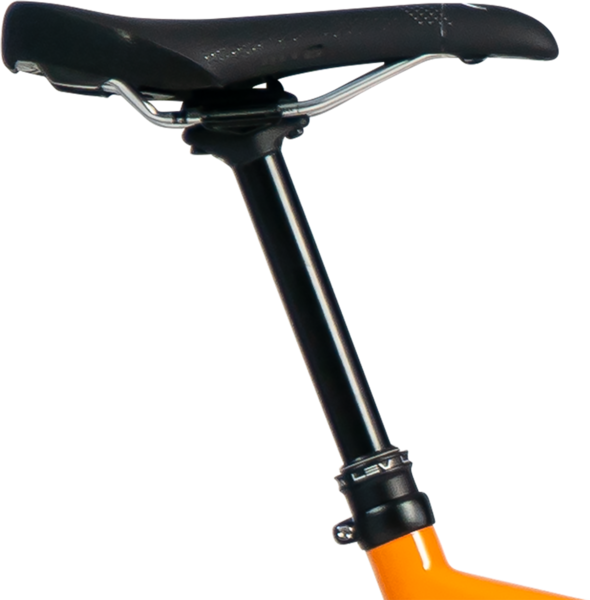

Seatpost KS LEV Integra Internal Dropper, w/SouthPaw Remote, 31.6mm
Saddle WTB Volt Chromoly SL
Pedals DB CNC Platform, Sealed Cartidge Bearing w/Replaceable Pins
Accessories & Extras Tool Kit, DB Shock Pump, Tubeless Valves, DB Mud Guard, Chainstay Protector, Carbon Paste

* Subject to change without notice.
